215-411 Wago 215-411 green male banana plug with CAGE CLAMP connection, rated 20A, accepts 14-28 AWG wire, free hanging in-line mounting.
Mfr Part #:

215-411

Available from 1 distributors
Mfr Name: Wago Corporation
Wago Corporation
Wago 215-411 green male banana plug with CAGE CLAMP connection, rated 20A, accepts 14-28 AWG wire, free hanging in-line mounting.
✓ Total Stock: 4 pcs

215-411 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
4 pcs
On Request
4 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

215-411 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Country of Origin
Depth
Gender
Height
Insulation
Mounting Type
Plug
Plug Type
Rated Current
Termination Style
Type
Weight
Width
Wire Gauge
View Similar Products (0)

215-411 Description

Short technical summary and product information.

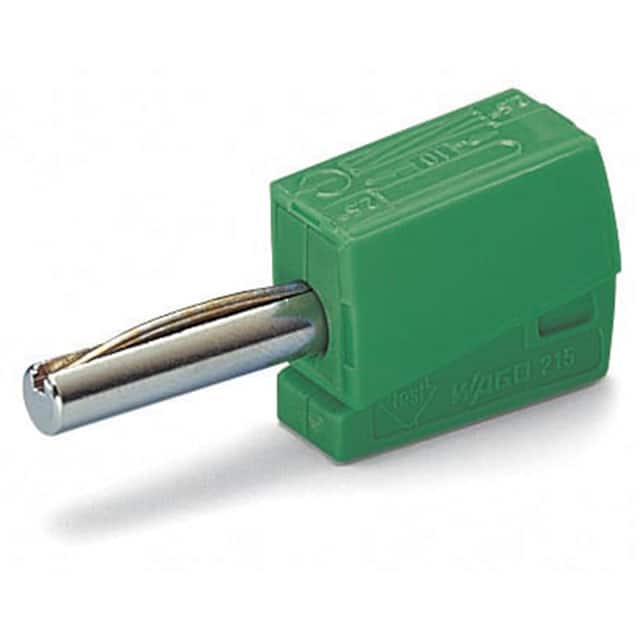

The Wago 215-411 is a green male standard banana plug designed for 4 mm sockets. It features a CAGE CLAMP connection technology for tool-free, reliable wire termination. The plug accepts solid or fine-stranded conductors from 0.08 mm² to 2.5 mm² (14-28 AWG) with a strip length of 9-11 mm. Rated current is 20 A with a test voltage of 42 V. Its free hanging (in-line) mounting with non-mating end insulation makes it suitable for panel wiring and test lead applications. Dimensions: 8 mm width, 15 mm height, 40 mm depth. Weight 3.9 g. Supplied in a box of 50 pieces.

215-411 Quick Information

Product Type: Banana Plug
Canonical Name: Wago 215-411 Green Male Standard Banana Plug, Cage Clamp, 20A
Subcategory: Standard Banana

215-411 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

215-411 Features

  • 20 A rated current capacity.
  • CAGE CLAMP tool-free wire termination.
  • Accepts 14-28 AWG solid or stranded wire.
  • Free hanging in-line mounting style.
  • Green insulated non-mating end.

215-411 Applications

  • Test and measurement lead assemblies.
  • Panel wiring for laboratory equipment.
  • Educational and training breadboards.

215-411 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the rated current of this banana plug?

20 A

What wire gauge does this plug accept?

14-28 AWG (0.08-2.5 mm²) solid or fine-stranded

What connection technology is used?

CAGE CLAMP

Is this banana plug RoHS compliant?

Yes, with exemption 6(c)

What is the packaging quantity?

50 pieces per box
