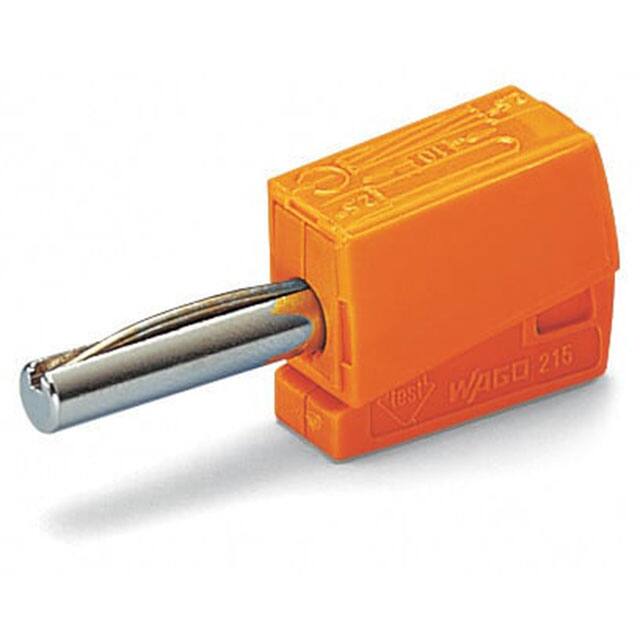

215-211 WAGO 215-211 banana plug with CAGE CLAMP connection, rated 20A at 42V, for 4mm sockets, orange.
Mfr Part #:

215-211

Available from 1 distributors
Mfr Name: Wago Corporation
Wago Corporation
WAGO 215-211 banana plug with CAGE CLAMP connection, rated 20A at 42V, for 4mm sockets, orange.
✓ Total Stock: 4 pcs

215-211 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
4 pcs
On Request
4 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

215-211 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Country of Origin
Depth
Gender
Height
Insulation
Insulation Material
Mounting Type
Plug
Plug Type
Rated Current
Type
Weight
Width
Wire Gauge
View Similar Products (0)

215-211 Description

Short technical summary and product information.

The WAGO 215-211 is a banana plug designed for use with 4 mm diameter sockets. It features WAGO's CAGE CLAMP connection technology, providing a reliable and maintenance-free wire connection. The plug is rated for a continuous current of 20 A and a test voltage of 42 V. It accepts solid and fine-stranded conductors from 0.08 to 2.5 mm² (28 to 14 AWG) with a strip length of 9-11 mm. The housing is made of orange polyamide (PA66) with a flammability class of V0 per UL94. The plug is free hanging (in-line) and has dimensions of 8 mm width, 15 mm height, and 40 mm depth. It is supplied in a box of 50 pieces. The product is RoHS compliant with exemption 6(c) and contains lead as a REACH candidate substance (CAS 7439-92-1).

215-211 Quick Information

Product Type: Banana Plug
Canonical Name: Banana Plug, 20A, 42V, for 4mm Socket, Orange
Subcategory: Standard Banana Plug

215-211 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Compliant

215-211 Features

  • Rated current of 20 A at 42 V.
  • CAGE CLAMP connection technology for secure wiring.
  • Accepts solid and fine-stranded conductors 0.08-2.5 mm².
  • Orange polyamide (PA66) housing, UL94 V-0 rated.
  • Free hanging (in-line) mounting style.

215-211 Applications

  • Used in test and measurement equipment.
  • Ideal for panel wiring and prototyping.
  • Suitable for 4 mm banana socket connections.
  • Common in educational and lab environments.

215-211 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the current rating of the WAGO 215-211 banana plug?

20 A.

What is the test voltage rating?

42 V.

What mounting type does this plug have?

Free hanging (in-line).

What wire sizes does it accept?

Solid and fine-stranded conductors from 0.08 to 2.5 mm² (28 to 14 AWG).

What is the connection technology used?

CAGE CLAMP.

What is the color of the plug?

Orange.

Is the plug RoHS compliant?

Yes, compliant with exemption 6(c).
