| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Features | |
| Housing Material | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions or Pins (Grid) | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Type |

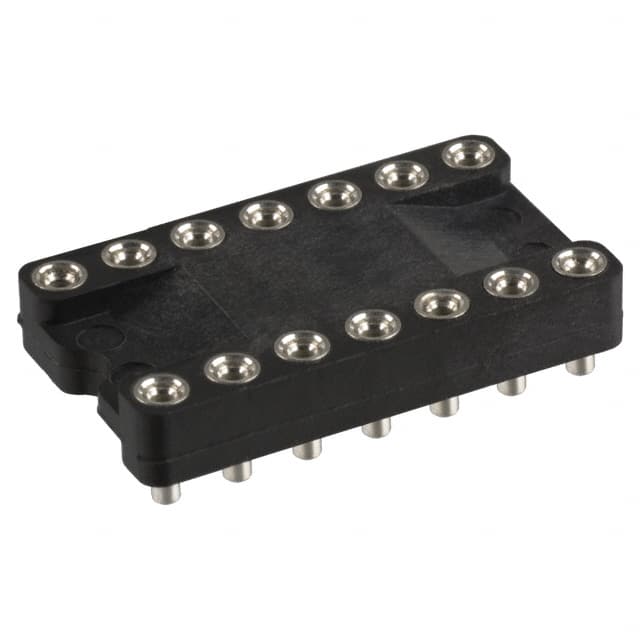

The Mill-Max 214-44-314-01-670800 is a 14-position DIP socket designed for surface mount applications. It features a standard 2.54mm (0.100") pitch and 0.3" (7.62mm) row spacing, making it compatible with common DIP IC packages.
The socket uses a closed frame housing made of Polycyclohexylenedimethylene Terephthalate (PCT) and polyester, providing robust mechanical support. Contacts are made of beryllium copper with a tin finish (100.0µin / 2.54µm) for reliable electrical connection.
Operating temperature range is -55°C to 125°C, suitable for industrial and automotive environments. Termination is solder for surface mount assembly.
It has 14 positions in a 2 x 7 arrangement.
The pitch is 2.54mm (0.100"). Row spacing is 0.3" (7.62mm).
It is a surface mount socket.
-55°C to 125°C.
Beryllium copper contact material with a tin finish of 100.0µin (2.54µm).
