| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
432 pcs
|
432 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

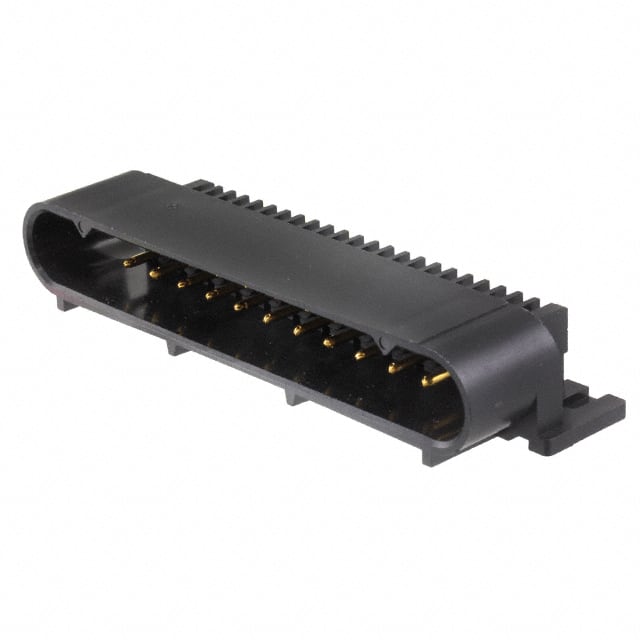

The TE Connectivity 213768-4 is a 23-position, 2-row male pin header connector designed for board-to-board or cable applications. It features a 6.35mm pitch and 5.08mm row spacing, with through hole right angle mounting for secure attachment. The shrouded 4-wall housing provides contact protection and alignment.
Electrical ratings include 7.5A current capacity and 600V voltage rating, suitable for moderate power distribution. The operating temperature range extends from -55°C to 130°C, allowing use in varied environments. Contacts are made of brass with 30µin tin finish, offering good conductivity and corrosion resistance.
The insulation is molded from black polyamide (PA) nylon with a UL94 V-0 flammability rating, enhancing safety. A mounting flange is included for additional mechanical stability. The push-pull fastening type simplifies mating and unmating. This connector is RoHS3 compliant and rated MSL 1 (unlimited), though compliance data is unverified.
23 positions.
6.35mm (0.250").
7.5A.
600V.
Through hole, right angle.
-55°C to 130°C.
Polyamide (PA) nylon with UL94 V-0 rating.
