| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
11 pcs
|
11 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

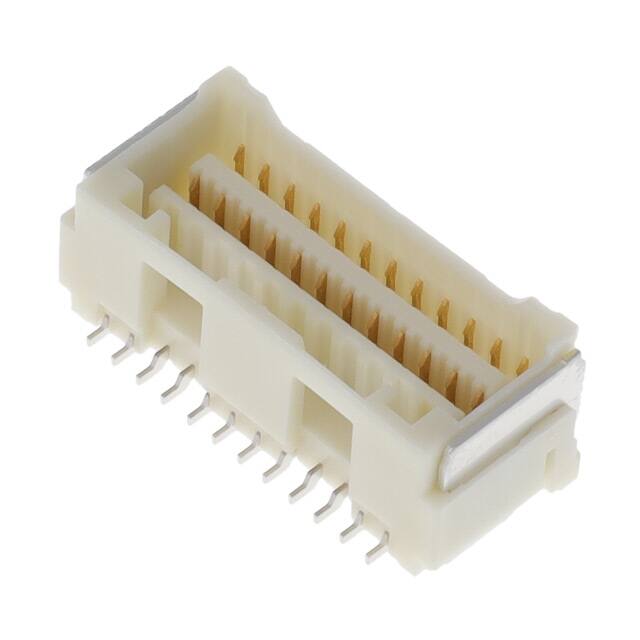

The Molex 2132272470 is a 24 position receptacle connector designed for board-to-cable/wire applications. It features a 1.50mm pitch, two rows, and all positions loaded. The connector uses forked contacts with a tin finish (30.0µin) and is terminated via solder to a surface mount board.
Mechanically, the housing is natural in color with an insulation height of 8.80mm. It includes pick and place and solder retention features for automated assembly. The fastening type is a latch holder, ensuring secure mating. The material flammability rating is UL94 V-0.
Electrically, the connector is rated for 100VAC/DC and has a current rating that varies by wire gauge. It operates over a temperature range of -40°C to 105°C.
It has 24 positions, all loaded, arranged in 2 rows.
The pitch is 1.50mm (0.059 inches).
The voltage rating is 100VAC/DC.
The mounting type is surface mount with solder termination.
The operating temperature range is -40°C to 105°C.
The contact finish is tin with a thickness of 30.0µin (0.76µm).
