| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7 pcs
|
7 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Flammability Rating | |
| Insulation Color | |
| Insulation Height | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Pitch | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

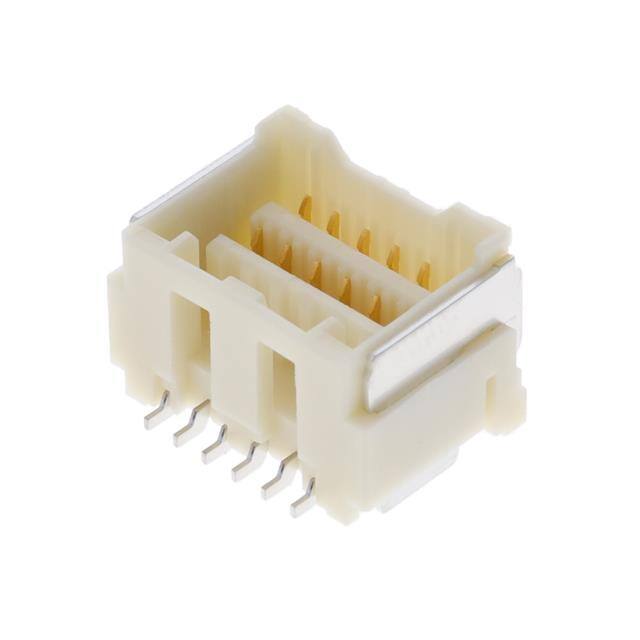

The Molex 2132271270 is a 12 position receptacle connector designed for board-to-cable/wire applications. It features a 1.50mm pitch, two rows, and surface mount solder termination. The forked contacts are finished with 30.0µin (0.76µm) of tin, and the natural insulation is rated UL94 V-0.
This connector is rated for 100VAC/DC and operates over a temperature range of -40°C to 105°C. The current rating varies by wire gauge. The latch holder fastening type provides secure mating, and pick-and-place as well as solder retention features support automated assembly.
The insulation height is 8.80mm. All 12 positions are loaded. The part is RoHS3 compliant and REACH unaffected per unverified data.
It has 12 positions, all loaded, in 2 rows.
The pitch is 1.50mm (0.059 inches).
The voltage rating is 100VAC/DC.
Surface mount with solder termination.
-40°C to 105°C.
UL94 V-0.
