| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
300 pcs
|
300 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

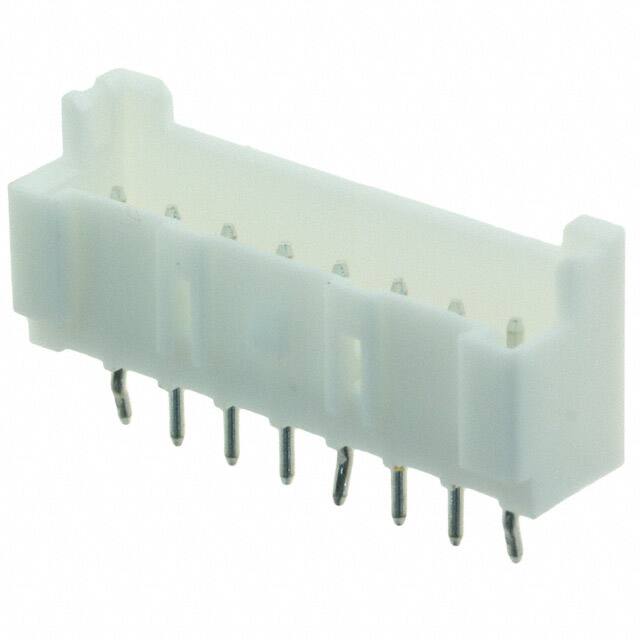

The TE Connectivity 2132230-8 is a rectangular connector header designed for board-to-cable/wire applications. It features 8 positions in a single row with a 2.5mm pitch, making it suitable for compact wiring harnesses.
The connector is shrouded with a 4-wall design and includes a friction lock for secure mating. It uses through hole mounting with kinked pin solder termination. The contacts are made of copper alloy with a tin finish of 80µin thickness.
Electrically, it is rated for 4.2A per contact and 250VAC. The insulation material is polyamide (PA66) with UL94 V-0 flammability rating, and it operates over -55°C to 105°C. A board guide feature aids alignment during assembly.
8 positions in a single row.
2.50mm (0.098").
4.2A per contact.
250VAC.
Through hole with kinked pin solder termination.
-55°C to 105°C.
Polyamide (PA66) with UL94 V-0 rating.
