| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12,000 pcs
|
12000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

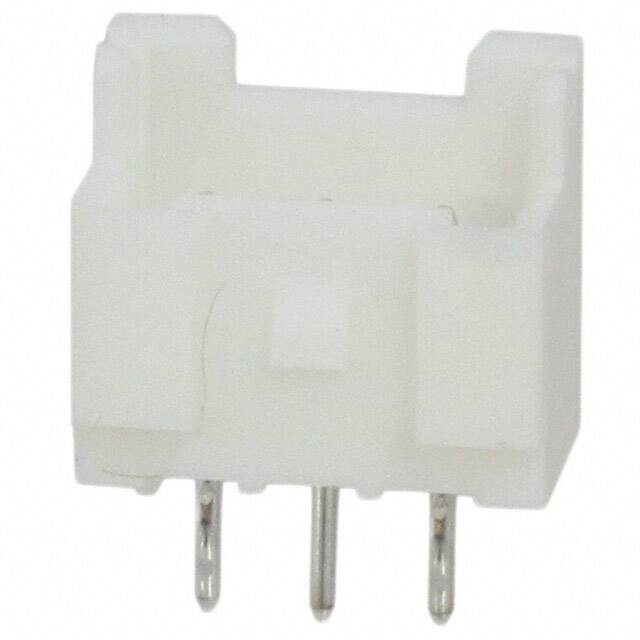

The TE Connectivity 2132230-3 is a 3-position, single-row header male pin connector designed for board-to-cable/wire applications. It features a 2.50mm pitch and through-hole mounting with kinked pin solder termination. The connector is shrouded with a 4-wall design and includes a friction lock for secure mating. A board guide feature aids alignment during assembly.
Electrical ratings include a current rating of 4.2A and a voltage rating of 250VAC. The operating temperature range is -55°C to 105°C. The insulator is made of polyamide (PA66) Nylon 6/6 in white, with a UL94 V-0 flammability rating. Contacts are copper alloy with a tin finish of 2.03µm thickness. The contact shape is circular with a length of 3.10mm.
This connector is suitable for wire-to-board connections requiring a reliable locking mechanism. The shrouded design provides protection and polarization, while the friction lock prevents accidental disconnection. Typical applications include consumer electronics, industrial controls, and automotive interior systems where moderate current and voltage are needed.
The pitch is 2.50mm.
It has 3 positions.
The current rating is 4.2A.
The voltage rating is 250VAC.
It uses through-hole mounting.
Yes, it has a shrouded 4-wall design.
The operating temperature range is -55°C to 105°C.
