| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Form | |
| Halogen Free | |
| Input Type | |
| Lead Style | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Size | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage |

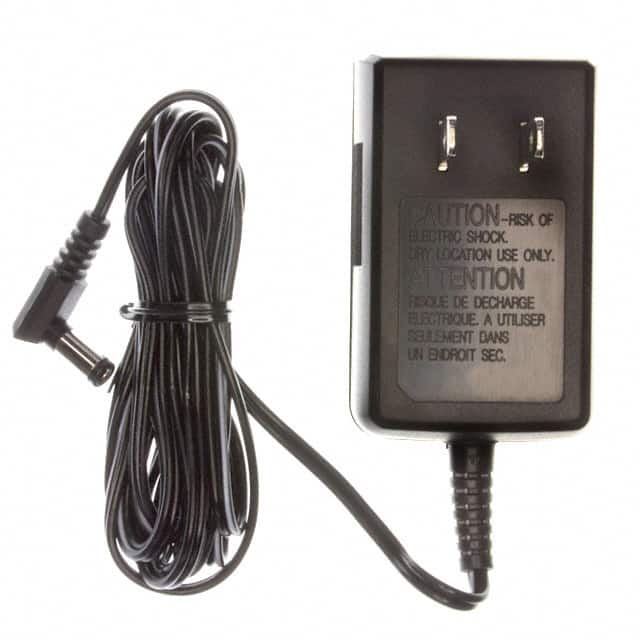

This Tamura 212AS20007 is an AC/AC wall mount adapter suitable for Information Technology Equipment (ITE) and commercial applications. It operates within a temperature range of -10°C to 40°C and is designed for use in North America.
The adapter features a fixed blade input and outputs power through a 2.1mm I.D. x 5.5mm O.D. x 12.5mm barrel plug connector. Its electrical specifications include a 20VAC output voltage, 75mA current rating, and a total power output of 2W.
Mechanically, the unit has dimensions of 35.5mm in length, 40.0mm in width, and 63.5mm in height. The wall mount packaging ensures convenient installation.
Compliance information indicates RoHS3 compliance, MSL 1, and REACH unaffected status, though these are noted as unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.50 | $4.50 |
| 10+ | $3.00 | $4.00 |
| 100+ | $2.50 | $3.50 |
| 1,000+ | $2.00 | $3.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The adapter provides a 20VAC output voltage.
The current rating is 75mA.
The power output is 2W.
It uses a Fixed Blade input type.
The output connector is a Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.5mm.
The operating temperature range is -10°C to 40°C.
It is suitable for ITE (Commercial) applications.
