| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Form | |
| Input Type | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Size | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage |

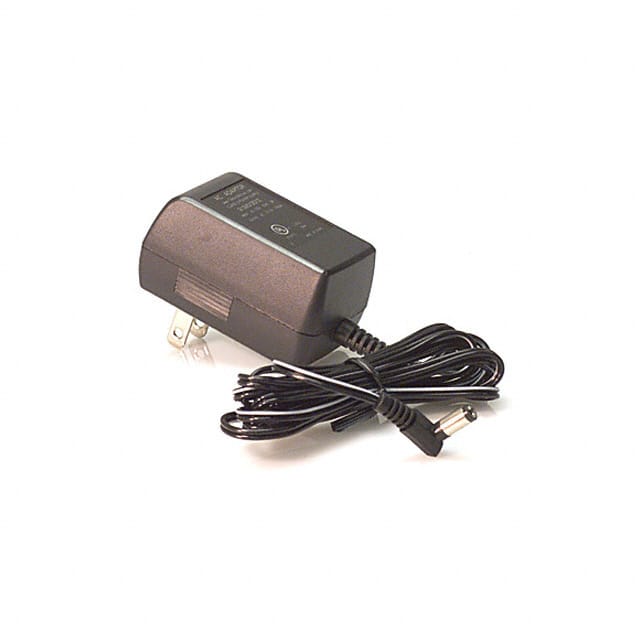

This Tamura 212AS12012 is an AC/AC wall mount adapter designed for various applications requiring a 12VAC power source. It delivers 2 watts of power with a fixed blade input type and a current rating of 125mA.
The adapter has a compact mechanical design with dimensions of 35.5mm in length, 40.0mm in width, and 63.5mm in height. It is suitable for operation within an ambient temperature range of -10°C to 40°C.
The output is provided via a right-angle barrel plug with standard dimensions: 2.1mm inner diameter and 5.5mm outer diameter, with a length of 12.5mm. This configuration is common for many electronic devices and systems.
Designed for ITE (Commercial) applications, this adapter offers a reliable power solution. Environmental compliance includes RoHS3, MSL 1, and REACH Unaffected, though these are noted as low-confidence data points.
| Qty | Low | High |
|---|---|---|
| 1+ | $9.00 | $11.00 |
| 10+ | $7.00 | $9.00 |
| 100+ | $5.00 | $7.00 |
| 1,000+ | $3.00 | $5.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is 12VAC.
The power rating is 2W.
It uses a fixed blade input type.
The dimensions are 35.5mm in length, 40.0mm in width, and 63.5mm in height.
The operating temperature range is -10°C to 40°C.
It features a barrel plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.5mm.
It is intended for ITE (Commercial) applications.
