Mfr Part #:

2125280800

Name: 2125280800
Brand: Molex
SKU: 2125280800

Mfr Name: Molex

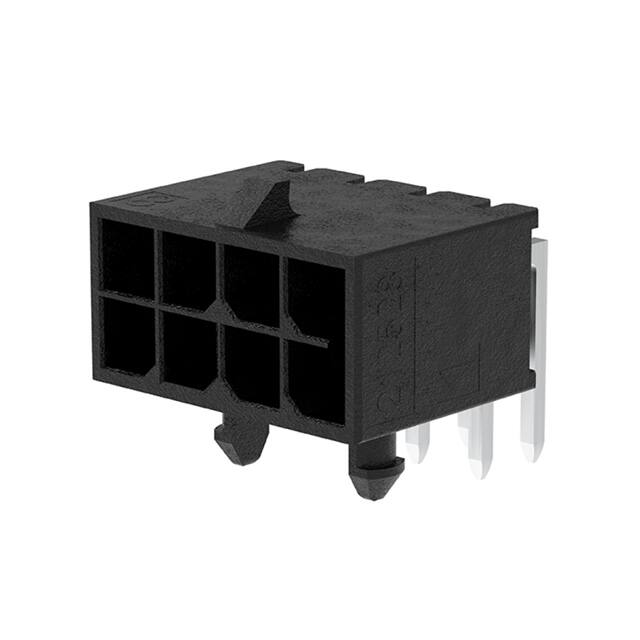

R/A HDR TIN 2X4CKT

Stock on Request

2125280800 Description

Short technical summary and product information.

R/A HDR TIN 2X4CKT

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

212528-0800

Molex

MICRO-FIT PLUS R/A HDR TIN 2X4CK

2125280801

Molex

R/A HDR 15 GOLD 2X4CKT

Category	Headers, Male Pins
Manufacturer Name	Molex
Connector Type	Header
Contact Finish	Tin
Contact Length	0.125" (3.18mm)
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Locking Ramp
Features	Board Lock
Insulation Color	Black
Insulation Height	0.291" (7.40mm)
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-40°C ~ 105°C
Pitch	0.118" (3.00mm)
Row Spacing	0.118" (3.00mm)
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	600VAC/DC
