| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
57 pcs
|
57 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Actuator Length | |
| Actuator Material | |
| Actuator Type | |
| Automotive Grade | |
| Bushing Thread | |
| Circuit | |
| Current Rating (Amps) | |
| Failure Rate | |
| Height | |
| Illumination | |
| Industrial Grade | |
| Lead Style | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Panel Cutout Dimensions | |
| Switch Function | |
| Tape & Reel | |
| Termination Style | |
| Voltage Rating | |
| Width |

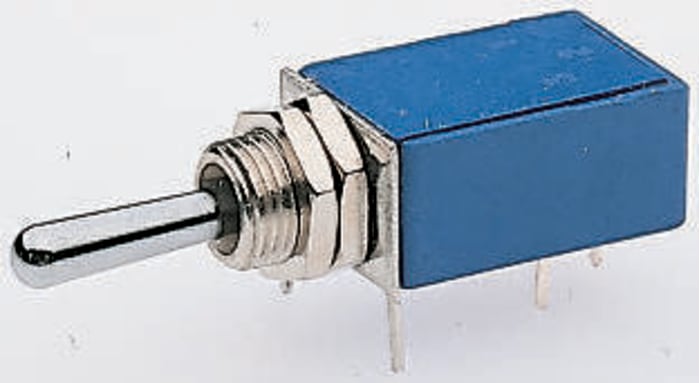

The APEM Inc. 21236NA is a single-pole double-throw (SPDT) toggle switch with an On-On function, suitable for various electrical applications. It is designed for PCB mounting with through-hole termination.
This switch operates with a contact current rating of 4A at both AC and DC voltages, with a maximum rating of 125V AC and 30V DC. The operating temperature range is from -40°C to 85°C. The actuator is made of brass and has a length of 11.5mm. The panel cutout size is 6.5mm in diameter.
Key mechanical specifications include a height of 35.5mm, a length of 11mm, and a width of 11.3mm. The series is 21000N, and it has a mechanical life of 100,000 operations. The minimum load is specified as 100mA @ 10V, with an electrical life of 20,000 operations.
This toggle switch is RoHS3 compliant and has an MSL rating of 1 Unlimited. It is manufactured in France.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The APEM 21236NA toggle switch has a SPDT (Single Pole Double Throw) contact configuration.
The switch operation for the APEM 21236NA is On-On.
The APEM 21236NA has a contact current rating of 4A.
The APEM 21236NA toggle switch is rated for 30V dc and 125V ac.
The APEM 21236NA toggle switch is designed for PCB mounting.
The APEM 21236NA operates within a temperature range of -40°C to 85°C.
The APEM 21236NA toggle switch has a mechanical life of 100,000 operations.
