Mfr Part #:

2122100041

Name: 2122100041
Brand: Molex
SKU: 2122100041

Mfr Name: Molex

Description:

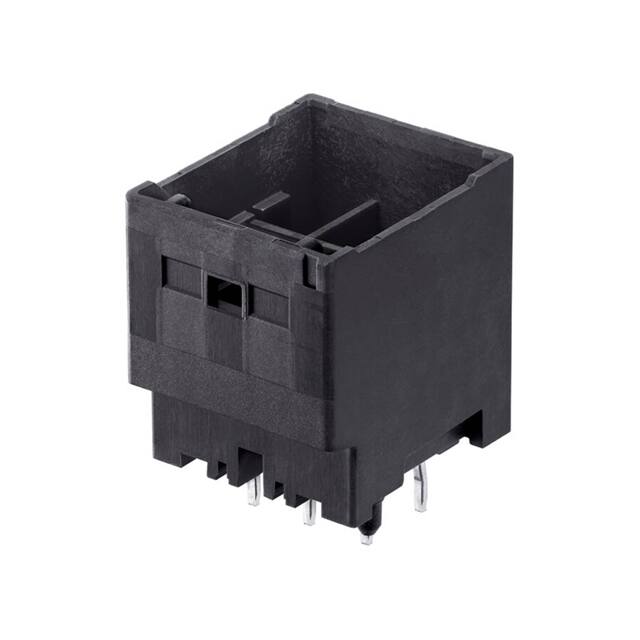

CP-3.3 W/B HDR ASSY DR ST DIP BL

Stock on Request

2122100041 Description

Short technical summary and product information.

CP-3.3 W/B HDR ASSY DR ST DIP BL

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Headers, Male Pins
Manufacturer Name	Molex
Connector Type	Header
Contact Finish	Tin
Contact Finish Thickness	39.4碌in (1.00碌m)
Contact Length	0.132" (3.35mm)
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Latch Holder
Features	Board Guide, Glow Wire Compliant
Insulation Color	Black
Insulation Height	0.549" (13.94mm)
Insulation Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-40°C ~ 105°C
Pitch	0.130" (3.30mm)
Row Spacing	0.163" (4.14mm)
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Kinked Pin, Solder
Voltage Rating	500VAC/DC
