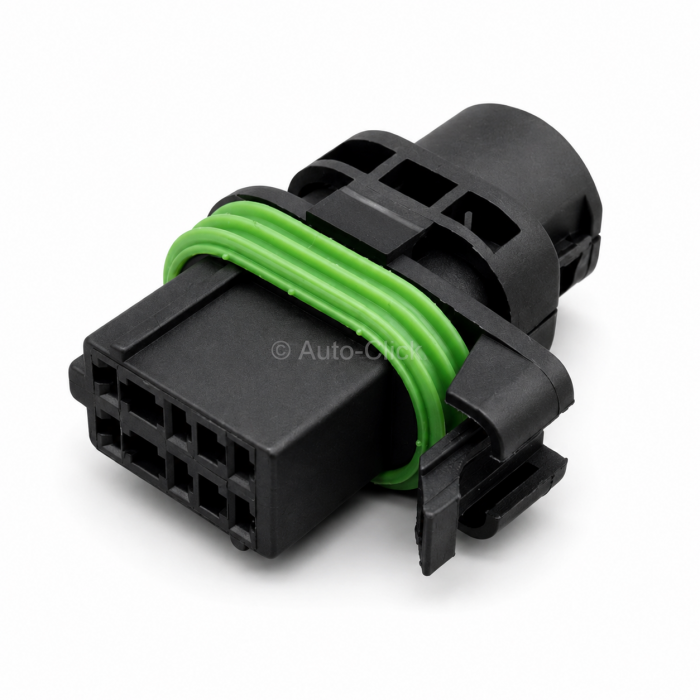

The Aptiv PLC 211PC063S0003 is a 6-way female automotive inline sealed connector plug housing designed for female socket receptacle contacts. It is part of the Aptiv SICMA 2.8 Sealed Series, formerly known as the Delphi/FCI platform. This connector is engineered for high-integrity electrical insulation and low-voltage power distribution in demanding automotive environments.
The terminal interface features a 6-pin dual-row (2x3 matrix) cavity layout with a 6.0mm centerline pitch and 5.0mm row spacing, specifically designed to accommodate SICMA 2.8mm female receptacle socket contacts. The connector is environmentally sealed to a high-performance IP rating, making it suitable for under-hood exposure, water washdowns, and road spray.
Security features include an integrated inner perimeter silicone compression matrix and individual wire mat sealing blocks for circuit isolation. It also incorporates a pre-staged Terminal Position Assurance (TPA) system to prevent contact pin back-out under axial wire harness stress. Mating is secured by a heavy-duty top mechanical integrated locking latch. This plug housing mates directly with its corresponding 6-way male tab counterpart or device shrouded header, such as part number 211PL063S0003.
Commonly specified as original equipment (OE) in major European passenger vehicle networks, this connector is built for reliability in moisture-heavy and vibration-prone structural zones.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6 positions.
6 mm.
2.8mm female socket receptacle contacts.
Yes, it is sealed to a high-performance IP rating for under-hood exposure, water washdowns, and road spray.
Yes, it uses a pre-staged primary structural housing lance system to prevent contact back-out.
Inline wire-to-wire or wire-to-device, mating with the 6-way male tab counterpart 211PL063S0003.
5 mm.
