| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Size | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Housing Color | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Orientation | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Tape & Reel | |
| Termination Style | |
| Type |

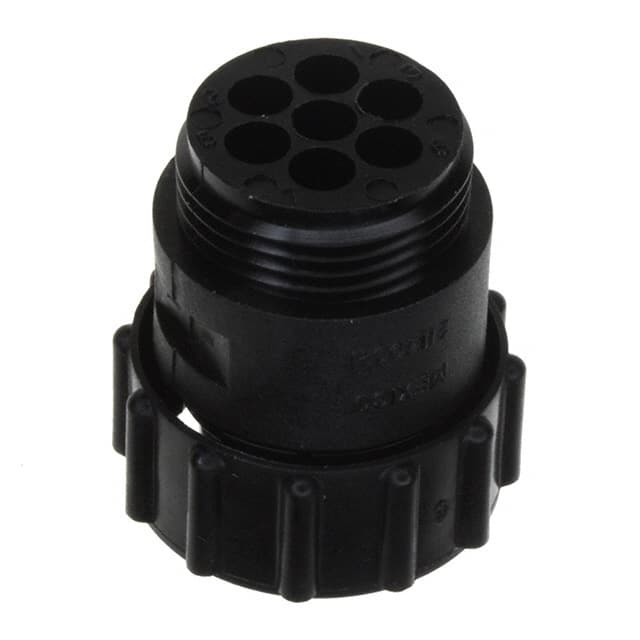

The TE Connectivity 211400-1 is a circular connector plug housing designed for use with male pin contacts. It accommodates 7 positions with contact size 16 and uses crimp termination. The housing features a threaded fastening type with a coupling nut for secure mating. It is free hanging (in-line) mounting, making it suitable for cable-to-cable connections.
The shell is made of glass-filled polyamide (PA66/Nylon 6/6) with a UL94 V-0 flammability rating, ensuring good mechanical strength and fire resistance. The housing is unshielded and has a black color. Orientation is keyed to position A.
This housing is part of TE Connectivity's circular connector family and is commonly used in industrial, commercial, and transportation applications where reliable and durable connections are required. The crimp contact type allows for easy field installation and maintenance.
| Qty | Low | High |
|---|---|---|
| 1+ | $9.33 | $9.33 |
| 10+ | $8.12 | $8.12 |
| 20+ | $7.76 | $7.76 |
| 50+ | $7.51 | $7.51 |
| 100+ | $7.22 | $7.22 |
| 200+ | $6.81 | $6.81 |
| 500+ | $6.65 | $6.65 |
| 1,000+ | $6.33 | $6.33 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The housing has 7 positions.
It accepts male pins with crimp termination, contact size 16.
Free hanging (in-line) mounting.
Threaded fastening with a coupling nut.
Shell is glass-filled polyamide (PA66/Nylon 6/6) with UL94 V-0 rating.
Shell size is 13-7.
No, it is unshielded.
