| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
94 pcs
|
94 pcs | On Request | 50 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Material | |
| Operating Temperature | |
| Specifications | |
| Storage Temperature | |
| Tape & Reel | |
| Width |

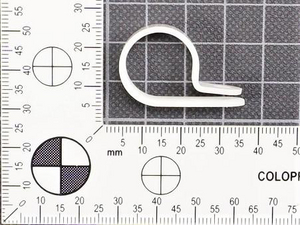

The HellermannTyton 211-60109 is a Plastic P-Clamp, part of the H10P product family. This clamp is constructed from Polyamide 6.6 (PA66) and features a natural color finish. It is designed for efficient cable management, with a maximum bundle diameter capacity of 17.5 mm.
The fixation method for this P-Clamp is a screw-hole, suitable for holes with a diameter of 4.2 mm. It operates within a temperature range of -40 °C to +85 °C and has a flammability rating of UL 94 V2. The clamp has a width of 10.0 mm and is supplied in packages of 1000 pieces.
This component is specified to meet EN 45545-2 standards. It is not UV-stabilized and contains 0% recyclate content. The P-Clamp variant is closed, offering a secure enclosure for bundled cables.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum bundle diameter for the HellermannTyton 211-60109 is 17.5 mm.
The HellermannTyton 211-60109 is secured using a screw-hole fixation method.
The operating temperature range for this P-Clamp is -40 °C to +85 °C.
The flammability rating of the HellermannTyton 211-60109 is UL 94 V2.
The HellermannTyton 211-60109 is made from Polyamide 6.6 (PA66).
The package quantity for the HellermannTyton 211-60109 is 1000 pieces.
