| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
16,733 pcs
|
16733 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Board | |
| Cable Pitch | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Features | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Termination Style | |
| Wire Gauge |

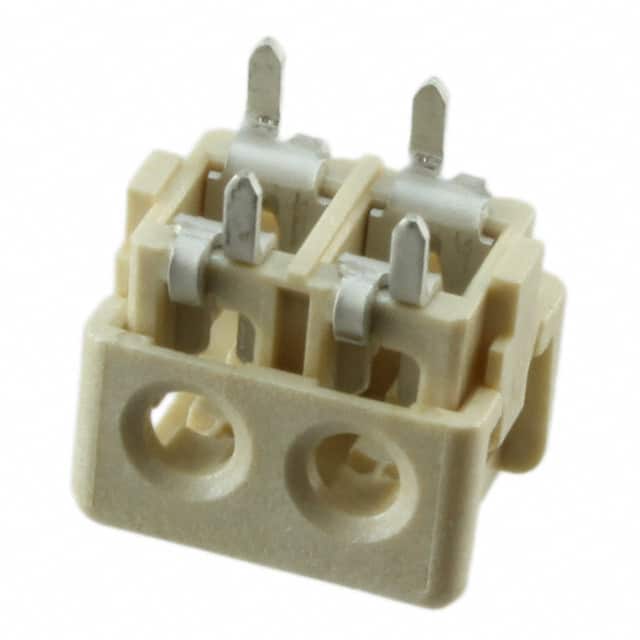

The TE Connectivity 2106489-2 is a board-in, direct wire-to-board connector designed for reliable termination of individual wires. This connector has 2 positions in a single row, with a cable pitch of 4.00mm (0.157 inches). It uses IDC (Insulation Displacement Connection) termination, allowing for quick and efficient cable assembly without stripping wires.
The connector is mounted via through hole, right angle orientation, making it suitable for applications where space is constrained and a low-profile connection is needed. The contact finish is tin, providing good conductivity and corrosion resistance. The housing is natural in color and features a closed end design, which helps protect the contacts and guide the mating cable.
This component is designed for use with 18 AWG wire, and the board mounting pitch matches the cable pitch at 4.00mm. It is commonly used in industrial control, automotive, and consumer electronics where a compact and secure wire-to-board interface is required.
The connector has 2 positions in a single row.
It is designed for 18 AWG wire.
Through hole, right angle mounting.
IDC (Insulation Displacement Connection).
Tin.
4.00mm (0.157 inches).
