| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,250 pcs
|
2250 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Flammability Rating | |
| Insulation Color | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Packaging Type | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

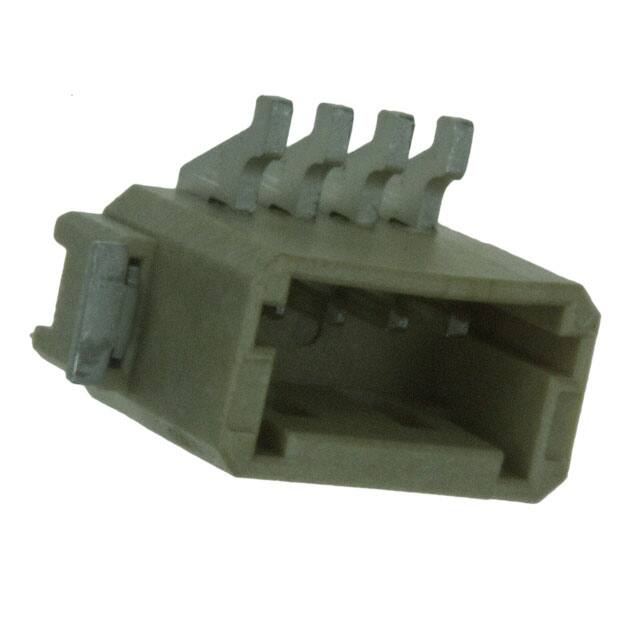

The TE Connectivity 2106091-3 is a 4-position, single-row header with male square pins on a 1.50mm pitch. It is designed for board-to-cable/wire connections and features a shrouded 4-wall housing for improved mating alignment and protection.
The connector supports both surface mount and through-board termination with solder retention for secure attachment. The insulation is molded from liquid crystal polymer (LCP) with a UL94 V-0 flammability rating, and the contacts are copper alloy with tin plating. The operating temperature range is -30°C to 105°C.
This header is rated for 50VAC and current capacity varies by wire gauge. It includes a detent lock fastening system for reliable mating and is packaged in tape and reel for automated assembly.
4 positions in a single row.
1.50mm.
50VAC.
Surface mount with through-board termination.
-30°C to 105°C.
Liquid Crystal Polymer (LCP) with UL94 V-0 rating.
