| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9 pcs
|
9 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Diameter | |
| Conductor Cross Section | |
| Conflict Minerals | |
| Connector Type | |
| Contact Resistance | |
| Contact Type | |
| Data Rate | |
| Fastening Type | |
| Features | |
| Gender | |
| Halogen Free | |
| Housing Color | |
| Housing Material | |
| Industrial Grade | |
| Ingress Protection | |
| Insert Material | |
| Insulation Resistance | |
| Isolation Group | |
| Mating Cycles | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Overvoltage Category | |
| Pollution Degree | |
| Prop 65 | |
| Rated Current | |
| Rated Impulse Voltage | |
| Rated Voltage | |
| SVHC Present | |
| Shell Size | |
| Shielding | |
| Termination Method | |
| Termination Style | |
| Tightening Torque | |
| Transmission Characteristics | |
| Type | |
| Wire Outer Diameter |

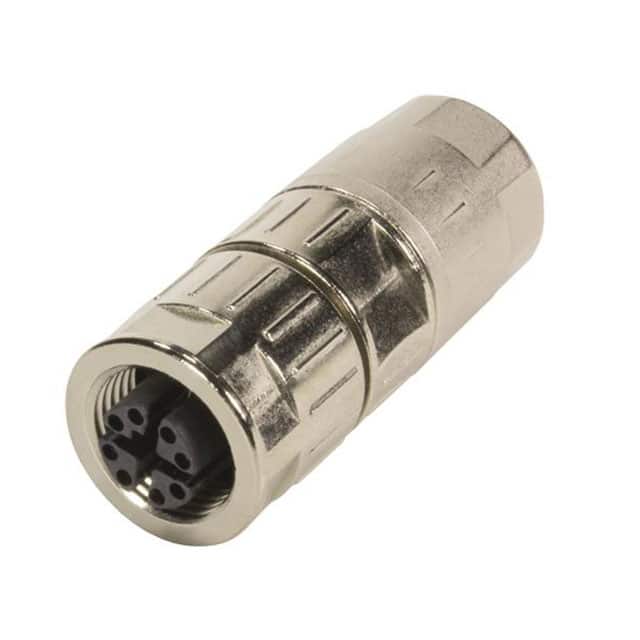

The Harting 21038812805 is an M12 X-Coded female plug housing designed for industrial Ethernet applications. It features 8 positions with crimp termination, providing reliable connections in harsh environments. The housing is shielded for EMI protection and rated IP65/IP67 when mated, ensuring dust tightness and water resistance.
Key electrical specifications include a rated current of 0.5 A, rated voltage of 48 V, and impulse voltage of 0.8 kV. It supports data rates from 10 Mbit/s up to 10 Gbit/s, with transmission characteristics meeting Cat.6A/Class EA up to 500 MHz. The connector is suitable for pollution degree 3 and overvoltage category III applications.
The housing is made of zinc die-cast with a liquid crystal polymer (LCP) insert, offering durability and thermal stability. It accommodates cable diameters from 5.7 to 8.8 mm and wire outer diameters up to 1.4 mm. The operating temperature range is -40 to +85°C, with a mating cycle life of at least 500 cycles.
Mounting is free hanging (in-line) with threaded fastening. Note that crimp contacts must be ordered separately.
8 positions.
0.5 A.
48 V.
Free Hanging (In-Line).
IP65/IP67 - Dust Tight, Water Resistant, Waterproof.
10 Mbit/s, 100 Mbit/s, 1 Gbit/s, 2.5 Gbit/s, 5 Gbit/s, 10 Gbit/s.
-40 to +85 °C.
