| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Diameter | |
| California Proposition 65 | |
| Category | |
| China RoHS | |
| Coding | |
| Conductor Cross Section | |
| Conductor Cross-Section (AWG) | |
| Connector Type | |
| Contact Resistance | |
| Contact Type | |
| Country of Origin | |
| ELV | |
| Failure Rate | |
| Fastening Type | |
| Features | |
| Fire Protection Railway | |
| Gender | |
| Housing Color | |
| Housing Material | |
| Ingress Protection | |
| Insert Material | |
| Insulation Resistance | |
| Isolation Group | |
| Lead Style | |
| Locking Type | |
| Mating Cycles | |
| Mounting Type | |
| Net Weight | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Overvoltage Category | |
| Packaging Size | |
| Pollution Degree | |
| Rated Current | |
| Rated Impulse Voltage | |
| Rated Voltage | |
| SVHC Present | |
| Shell Size | |
| Shielding | |
| Specifications | |
| Termination Method | |
| Tightening Torque | |
| Type | |
| UL/CSA | |
| Wire Outer Diameter | |
| Wrench Size |

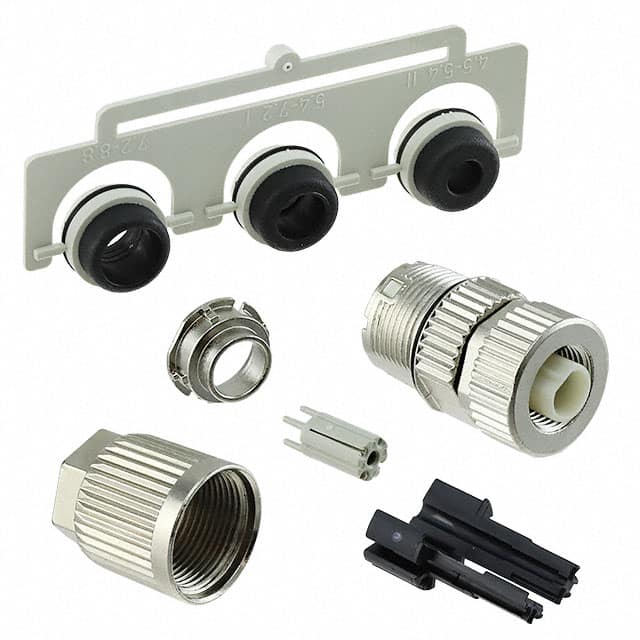

The HARTING 21038412505 is an M12 circular connector receptacle housing designed for female crimp contacts (sold separately). It features a 5-position B-coding, ensuring proper keying for industrial Ethernet and fieldbus applications. The housing is made of zinc die-cast with a silver finish and includes a polyamide (PA) insert. It offers screw locking for secure mating and is shielded for electromagnetic compatibility.
Electrical ratings include a rated current of 4A, rated voltage of 60V, and rated impulse voltage of 1.5 kV. The insulation resistance exceeds 1×10⁸ Ω, and contact resistance is ≤10 mΩ. The connector accepts wire diameters up to 2.3 mm and cable diameters from 4.5 to 8.8 mm, with conductor cross-sections of 0.14–0.75 mm² (AWG 26–18).
The housing provides IP65 and IP67 protection when mated, making it suitable for harsh industrial environments. It operates over a temperature range of -40°C to +85°C and is rated for at least 500 mating cycles. The connector complies with IEC 61076-2-101, UL 1977, and CSA C22.2 No. 182.3, and is also certified for railway applications per EN 45545-2 (R26).
This receptacle housing has 5 positions (contacts).
The rated current is 4 A.
The rated voltage is 60 V.
It is a free hanging (in-line) mounting type.
The connector is rated IP65 and IP67 (dust-tight and waterproof when mated).
It is B-coded.
Yes, it is shielded.
