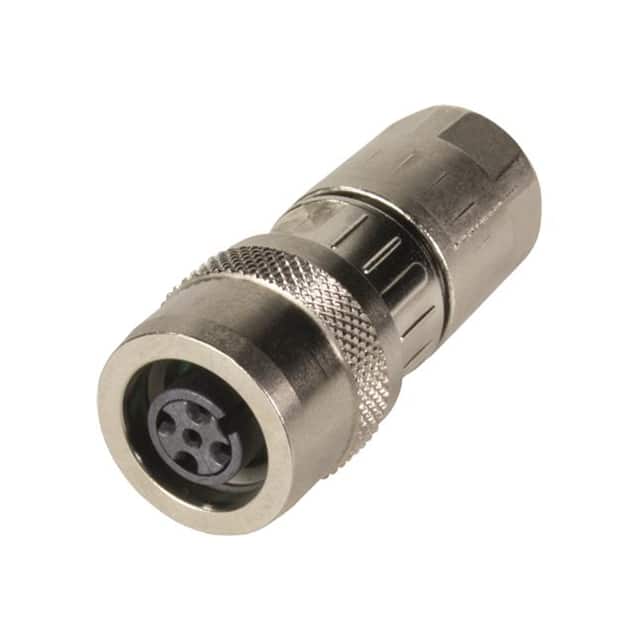

The Harting M12-PP-CC-IDC-4P-DCOD-F-STR-SHLD (part number 21 03 382 2401) is a circular connector assembly designed for Fast Ethernet applications. It features a female plug with 4 gold-plated contacts, D-coding, and a shielded zinc die-cast housing. The connector uses HARAX IDC termination for quick field assembly without special tools.
Electrical ratings include 4 A rated current, 50 V rated voltage, and 1.5 kV rated impulse voltage. It supports data rates up to 100 Mbit/s and meets Cat. 5 Class D transmission characteristics up to 100 MHz. The insulation resistance exceeds 10^8 Ω, and contact resistance is ≤10 mΩ.
The connector is free-hanging (in-line) with an outer PushPull locking mechanism. It accommodates cable diameters from 5.7 to 8.8 mm and wire sizes of 0.34 mm² (AWG 22). The operating temperature range is -40 to +85 °C, and it is rated for at least 100 mating cycles. Protection class is IP65/IP67 when mated.
Plug, Female Sockets.
4 positions.
Rated current 4 A, rated voltage 50 V.
Free Hanging (In-Line).
IP65 / IP67 mated condition.
IDC (HARAX connection technology).
-40 to +85 °C.
