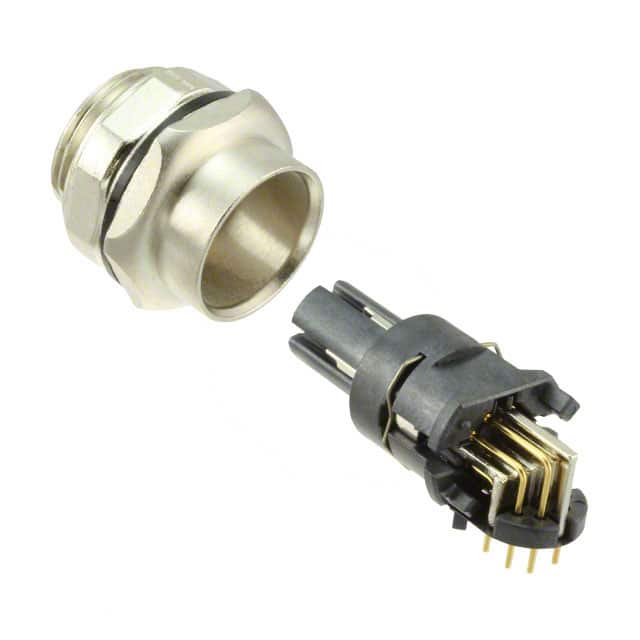

This HARTING M12 female circular connector (part number 21 03 381 4804 / 21033814804) is an 8-position, X-coded PCB adapter designed for high-speed data transmission.
The connector supports data rates from 10 Mbit/s up to 10 Gbit/s and meets Cat. 6A Class EA transmission characteristics up to 500 MHz. It is rated for 0.5 A per contact and 50 V, with a rated impulse voltage of 0.8 kV and overvoltage category III. The shielding provides EMI protection for signal integrity.
Mechanically, the connector features a right-angle, panel-mount design with threaded fastening and a zinc die-cast shell. Contacts are copper alloy with gold over nickel plating on the mating side. The insert is liquid crystal polymer (LCP) with UL 94 V-0 flammability rating. It achieves IP65/IP67 protection when mated and operates from -40°C to +85°C with a minimum of 100 mating cycles. Termination is via reflow soldering (THR). Packaged in trays of 30 pieces.
It supports 10 Mbit/s, 100 Mbit/s, 1 Gbit/s, 2.5 Gbit/s, 5 Gbit/s, and 10 Gbit/s.
Rated current is 0.5 A per contact; rated voltage is 50 V DC.
Panel mount, through hole, right angle with bulkhead mounting feature.
IP65 and IP67 when mated.
Reflow soldering termination (THR).
Yes, it is shielded.
-40°C to 85°C.
