| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| California Proposition 65 | |
| China RoHS | |
| Coding | |
| Color | |
| Connector Type | |
| Convert From (Adapter End) | |
| Convert To (Adapter End) | |
| Country of Origin | |
| Data Rate | |
| Degree of Protection | |
| ELV | |
| Failure Rate | |
| Features | |
| Fire Protection on Railway Vehicles | |
| Gender | |
| Limiting Temperature | |
| Material (Contacts) | |
| Material (Hood/Housing) | |
| Material (Insert) | |
| Material Flammability Class | |
| Mating Cycles | |
| Net Weight | |
| Number of Positions | |
| Packaging Size | |
| Panel Thickness | |
| Rated Current | |
| Rated Voltage | |
| SVHC Present | |
| Storage Temperature | |
| Surface (Contacts) | |
| Transmission Characteristics |

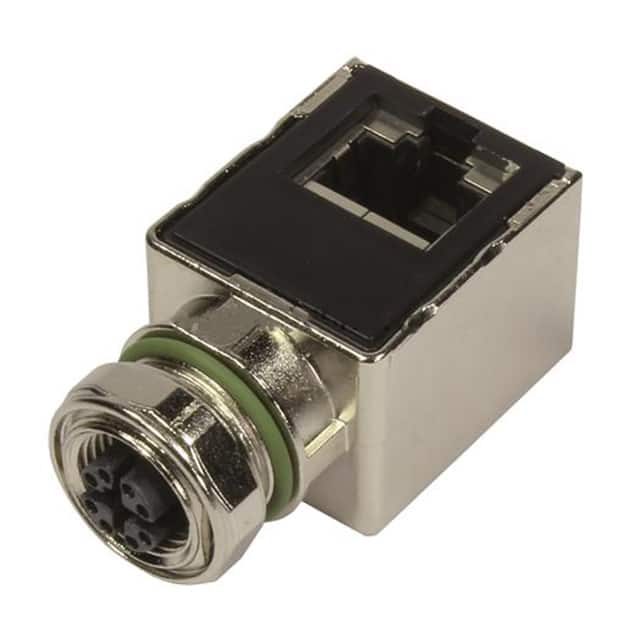

The Harting 21 03 381 4800 is an angled adapter that converts a female M12 X-coded 8-pole circular connector to a standard RJ45 female jack (8p8c). Designed for panel feed-through, this between-series adapter supports Cat 6A Class EA transmission up to 500 MHz and data rates up to 10 Gbit/s.
Electrical specifications include a rated current of 0.5 A and rated voltage of 48 V AC or 60 V DC. The adapter is IP65 and IP67 rated when mated, making it suitable for industrial environments requiring protection against dust and water. Operating temperature range is -40 to +85 °C with a minimum of 100 mating cycles.
The housing is zinc die-cast with a silver finish. The insert is liquid crystal polymer (LCP) with copper alloy contacts plated with gold over nickel on the mating side. Flammability rating is UL 94 V-0. Panel thickness accommodation is 2.1 to 4.5 mm. Weight is 48 g.
Cat. 6A Class EA up to 500 MHz.
0.5 A rated current; 48 V AC and 60 V DC rated voltage.
IP65 / IP67 in mated condition.
-40 to +85 °C.
Housing: zinc die-cast. Contacts: copper alloy with gold over nickel plating on mating side. Insert: liquid crystal polymer (LCP).
Yes, RoHS compliant with exemption 6(c) for copper alloy containing up to 4% lead by weight.
UL 94 V-0.
