| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Diameter Range | |
| Cable Opening | |
| California Proposition 65 | |
| China RoHS | |
| Coding | |
| Color | |
| Conductor Cross Section | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Current Rating | |
| Current Rating (Amps) | |
| ELV | |
| Fastening Type | |
| Features | |
| Fire Protection Standard | |
| Ingress Protection | |
| Insert Material | |
| Insulation Resistance | |
| Isolation Group | |
| Mating Cycles | |
| Mounting Type | |
| Number of Contacts | |
| Number of Positions | |
| Operating Temperature | |
| Operating Temperature Range | |
| Orientation | |
| Overvoltage Category | |
| Packaging Quantity | |
| Pollution Degree | |
| Primary Material | |
| Rated Impulse Voltage | |
| SVHC Present | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Specifications | |
| Termination | |
| Termination Method | |
| Tightening Torque | |
| Voltage Rating | |
| Wrench Size |

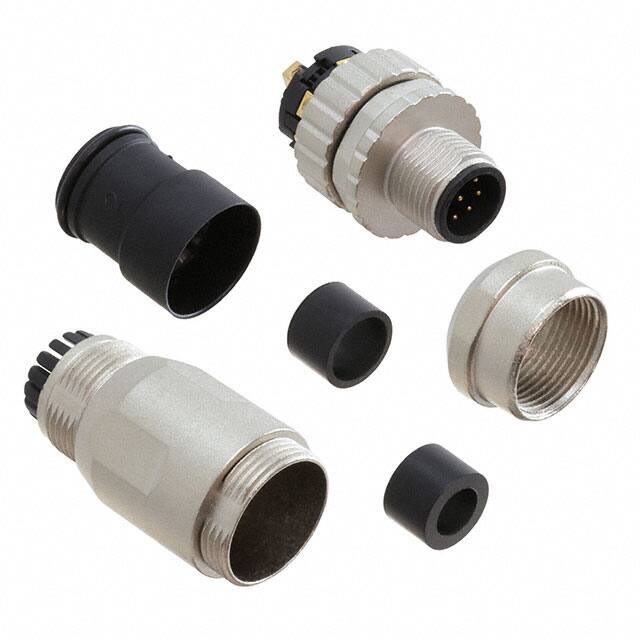

The Harting 21033291801 is an M12 circular connector designed for industrial applications requiring reliable signal transmission in harsh environments. This male receptacle connector features 8 contacts with A-coding, screw termination, and gold plating over nickel on the mating side for low contact resistance (≤10 mΩ) and corrosion resistance. The connector is shielded and housed in a zinc die-cast shell with a polyamide (PA) insert, providing robust mechanical protection.
Electrical ratings include 30V voltage, 2A current per contact, and rated impulse voltage of 0.8 kV. It meets pollution degree 3 and overvoltage category III, with an insulation resistance greater than 100 MΩ. The operating temperature range is -30°C to +85°C, and the connector achieves IP67 protection when mated, making it suitable for dusty and wet conditions.
Mechanical features include a free-hanging (in-line) mounting type with threaded locking, cable diameter accommodation of 4 to 8 mm, and a tightening torque of 0.6 Nm. The connector is rated for at least 100 mating cycles and is designed per IEC 61076-2-101, UL 2238, and CSA C22.2 No. 182.3 standards. It also complies with fire protection standard EN 45545-2 for railway applications.
8 positions (contacts).
2 A per contact.
30 V.
Free hanging (in-line).
IP67 when mated (dust tight and waterproof).
Screw termination.
-30°C to +85°C.
