| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Diameter | |
| Cable Opening | |
| California Proposition 65 | |
| Coding | |
| Color | |
| Conductor Cross Section | |
| Conductor Cross-Section (AWG) | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Contact Surface | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Fire Protection on Railway Vehicles | |
| Halogen Free | |
| Housing Material | |
| Industrial Grade | |
| Ingress Protection | |
| Insert Material | |
| Insulation Resistance | |
| Isolation Group | |
| Locking Type | |
| Mating Cycles | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Overvoltage Category | |
| Pollution Degree | |
| Primary Material | |
| Rated Current | |
| Rated Impulse Voltage | |
| Rated Voltage | |
| SVHC Present | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Specifications | |
| Termination | |
| Termination Method | |
| Tightening Torque | |
| Voltage Rating | |
| Wire Outer Diameter | |
| Wrench Size |

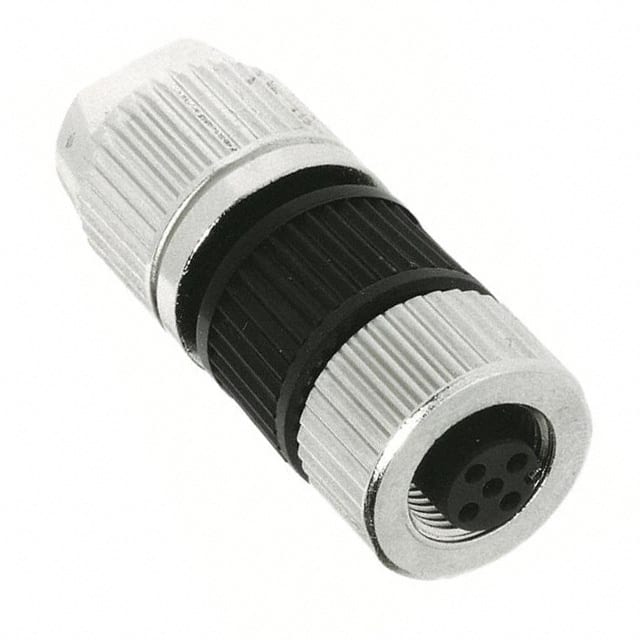

The HARTING 21032122305 is a circular connector from the M12-L series, designed as a 4-pin female receptacle with A-coding. It features HARAX IDC termination technology for quick and reliable wire connections without stripping or soldering. The connector is unshielded and has a free-hanging (in-line) mounting style with screw locking for secure mating.
Electrical ratings include 4A rated current, 50V rated voltage, and 1.5kV rated impulse voltage. The insulation resistance exceeds 108 Ω and contact resistance is ≤10 mΩ. The connector is rated for IP65/IP67 protection when mated, making it suitable for harsh industrial environments. Operating temperature range is -40°C to +85°C, with a minimum of 100 mating cycles.
Mechanical features include a zinc die-cast shell with a black and silver polyamide insert, gold-plated brass contacts, and a cable diameter range of 6 to 8 mm. The connector accepts conductor cross-sections of 0.34 to 0.75 mm² (22 to 18 AWG).
Compliance includes RoHS compliant with exemption 6(c) for lead content, REACH with SVHC lead, and California Proposition 65 listing. The connector meets IEC 61076-2-101 specifications and has fire protection rating EN 45545-2 for railway applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $29.25 | $29.25 |
| 10+ | $24.67 | $24.67 |
| 25+ | $24.55 | $24.55 |
| 50+ | $23.32 | $23.32 |
| 100+ | $22.32 | $22.32 |
| 250+ | $21.56 | $21.56 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 positions.
4 A.
50 V.
Free Hanging (In-Line).
IP65/IP67 when mated.
-40 °C to +85 °C.
A-coding.
