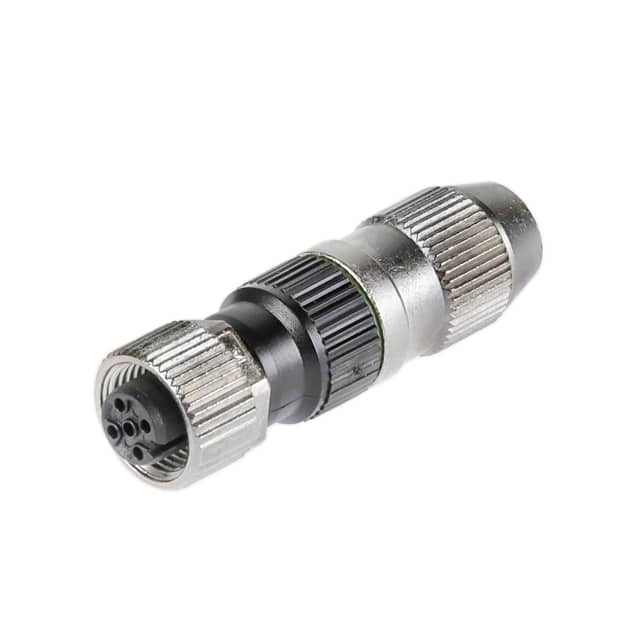

The Harting 21031122405 is a circular connector from the M12 series, designed as a cable connector with a female contact configuration. It features 4 contacts with A-coding and uses HARAX connection technology for tool-free, insulation displacement termination of wires with a cross-section of 0.25 to 0.5 mm² (AWG 24 to AWG 20). The connector is unshielded and suited for free-hanging (in-line) mounting with a threaded fastening type and screw locking mechanism.
Electrically, the connector is rated for 4 A current and 32 V voltage, with a rated impulse voltage of 1.5 kV and pollution degree 3. It provides an insulation resistance greater than 108 Ω and a contact resistance of 10 mΩ or less. The operating temperature range is -40 to +85 °C, and it achieves IP65 and IP67 protection levels when in mated condition.
The housing is made of polyamide (PA) and zinc die-cast, while the contacts are brass with a gold-over-nickel surface. The insulator is polyamide (PA). The connector meets RoHS, ELV, China RoHS, and REACH compliance standards.
The termination method is HARAX connection technology, a tool-free insulation displacement connection.
This connector has 4 contacts arranged with A-coding.
The rated current is 4 A and the rated voltage is 32 V.
Yes, it is a cable connector designed for free hanging (in-line) mounting with HARAX termination, making it suitable for field assembly.
The connector provides IP65 and IP67 protection when in mated condition.
