| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
60 pcs
|
60 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Style | |
| Connector Type | |
| Connector Usage | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Layout, Typical | |
| Features | |
| Lead Style | |
| Mounting Type | |
| Number of Columns | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Tape & Reel | |
| Termination |

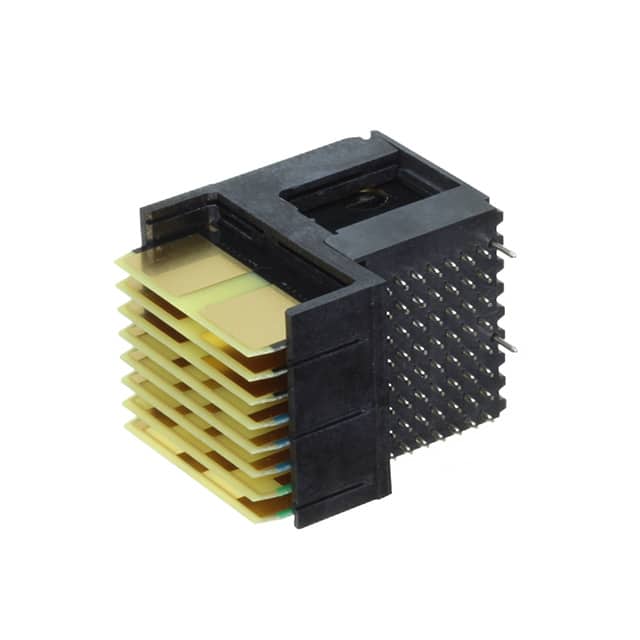

The TE Connectivity 2102772-1 is a VITA 46 half left end daughtercard plug designed for backplane applications. It features 56 positions with 53 loaded, arranged in 7 rows and 8 columns at a 1.80mm pitch. The contact layout includes 4 signal pairs, 16 single signal, 6 power groups, 11 ground, and 3 open positions.
This connector uses press-fit termination for reliable board-edge through-hole right-angle mounting. Contacts are finished with 50µin (1.27µm) of gold, ensuring high conductivity and durability. A board guide feature aids alignment during assembly. The housing is black and the connector is rated RoHS3 compliant, REACH unaffected, with MSL 1 unlimited.
Ideal for high-speed data transmission in defense, aerospace, and industrial systems, this connector supports dense signal and power routing in VITA 46 standard backplanes. Its compact half-length design saves space on the daughtercard edge.
56 positions total, with 53 loaded.
1.80mm (0.071").
Board edge, through hole, right angle with press-fit termination.
7 rows.
8 columns.
Gold, 50µin (1.27µm) thickness.
Press-fit.
