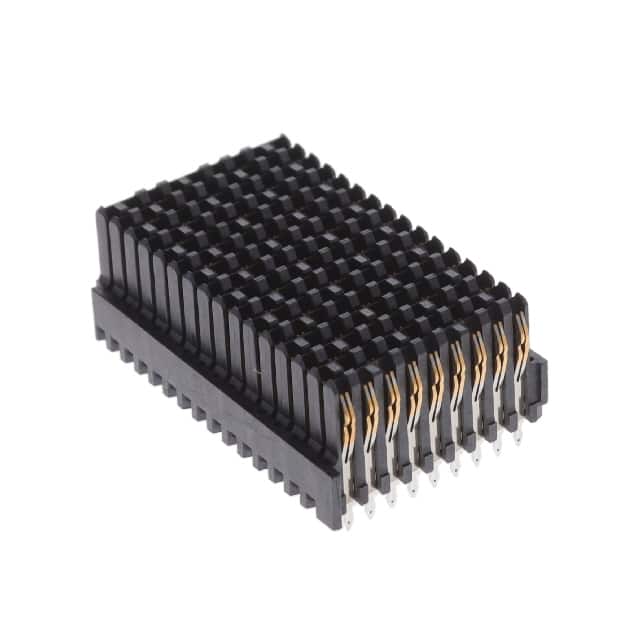

2102736-1 TE Connectivity 2102736-1 is a MULTIGIG RT 2R backplane receptacle connector with 144 positions, 9 rows, and a 1.80mm pitch. It features press-fit termination and gold-plated contacts.
Mfr Part #:

2102736-1

Available from 2 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 2102736-1 is a MULTIGIG RT 2R backplane receptacle connector with 144 positions, 9 rows, and a 1.80mm pitch. It features press-fit termination and gold-plated contacts.
✓ Total Stock: 114 pcs

2102736-1 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
102 pcs
On Request
102 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
12 pcs
On Request
12 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

2102736-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Connector Style
Connector Type
Connector Usage
Contact Finish
Contact Finish Thickness
Features
Mounting Type
Number of Columns
Number of Positions
Number of Positions Loaded
Number of Rows
Pitch
Tape & Reel
Termination
Termination Style
View Similar Products (0)

2102736-1 Description

Short technical summary and product information.

The TE Connectivity 2102736-1 is a MULTIGIG RT 2R backplane receptacle connector designed for high-density backplane applications. It offers 144 positions arranged in 9 rows with a 1.80mm pitch, providing a compact and reliable interconnection solution.



This connector features a through-hole mounting type with press-fit termination, ensuring a secure and solderless connection to the PCB. The contacts are finished with 50.0µin (1.27µm) of gold for reliable signal integrity and corrosion resistance. The housing is black and includes a board guide feature for accurate alignment during assembly.



As part of the MULTIGIG product family, this connector is suitable for use in backplane systems requiring high pin counts and robust mechanical performance. All 144 positions are loaded, maximizing the available I/O density.

2102736-1 Quick Information

Product Type: Backplane Connector
Series: RT 2R
Canonical Name: TE Connectivity MULTIGIG RT 2R Backplane Receptacle Connector, 144 Position, 9 Row, Press-Fit
Subcategory: Backplane Connector

2102736-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

2102736-1 Features

  • 144 positions in 9 rows.
  • 1.80mm pitch for high density.
  • Press-fit termination for solderless assembly.
  • Gold contact finish for reliable connections.
  • Board guide for accurate alignment.

2102736-1 Applications

  • High-density backplane interconnection systems.
  • Telecommunications and networking equipment.
  • Data center server backplanes.
  • Industrial control backplane assemblies.

2102736-1 FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the 2102736-1 connector have?

The connector has 144 positions, all loaded.

What is the pitch of the 2102736-1 connector?

The pitch is 1.80mm (0.071 inches).

What is the mounting type for this connector?

The mounting type is through hole with press-fit termination.

What contact finish is used on the 2102736-1?

The contacts are finished with 50.0µin (1.27µm) of gold.

What is the connector style of the 2102736-1?

The connector style is MULTIGIG, Center.
