| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Ingress Protection | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Termination | |
| Termination Style | |
| Voltage Rating |

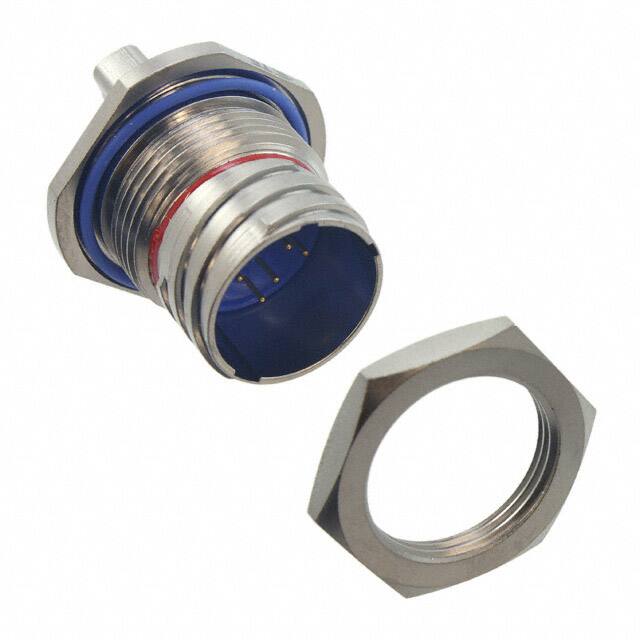

The TE Connectivity 2102351-1 is a circular connector receptacle with male pins, offering 8 positions in a panel mount package with solder termination. The connector features a threaded fastening type for secure mating and is shielded for EMI protection. The shell is constructed from aluminum with a nickel finish, providing durability and corrosion resistance.
This connector is rated for IP67 ingress protection, making it dust-tight and waterproof for harsh environment applications. It is designed for a wide operating temperature range of -65°C to 170°C, suitable for demanding thermal conditions. Electrical ratings include a current rating of 5A and a voltage rating of 500VAC.
The mounting feature is bulkhead - front side nut, allowing for robust panel installation. The orientation is normal (N) and the primary material is metal. This connector assembly is ideal for applications requiring reliable and sealed connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $225.74 | $225.74 |
| 10+ | $191.89 | $191.89 |
| 25+ | $179.90 | $179.90 |
| 50+ | $171.04 | $171.04 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 positions.
5A.
500VAC.
Panel mount with bulkhead front side nut.
IP67 - dust tight and waterproof.
-65°C to 170°C.
Aluminum with nickel finish.
