| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
47 pcs
|
47 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Inductance | |
| Lead Length | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Prop 65 | |
| Shielding | |
| Tape & Reel | |
| Termination Style | |
| Tolerance | |
| Type |

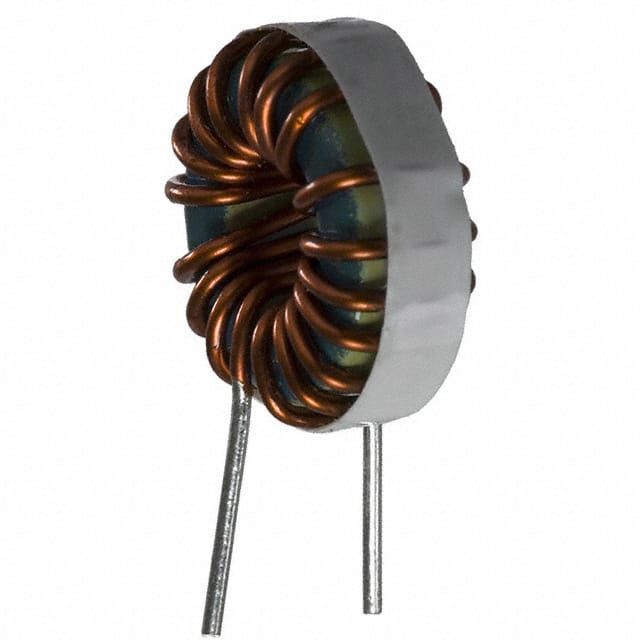

The Bourns 2100HT-470-V-RC is a high-temperature, high-current toroidal inductor from the 2100HT series. It offers an inductance of 47 µH with a tolerance of ±15% and a DC current rating of 5.6 A based on a 50°C temperature rise. The maximum DC resistance is 36 mOhm, ensuring efficient power handling.
The inductor features a shielded toroidal core design, which minimizes electromagnetic interference and provides stable performance in demanding applications. It is mounted using a through-hole radial package with a vertical open construction, measuring 0.860 inches in diameter and 0.450 inches in width (21.84 mm x 11.43 mm).
Designed for high-temperature environments, the component operates over a temperature range of -55°C to 200°C, making it suitable for automotive, industrial, and power supply applications where reliability under thermal stress is critical. The radial lead style with 0.5-inch lead length facilitates easy integration into printed circuit boards.
This inductor is RoHS compliant and includes a California Proposition 65 warning.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.96 | $4.96 |
| 10+ | $4.08 | $4.08 |
| 25+ | $3.78 | $3.78 |
| 50+ | $3.56 | $3.56 |
| 100+ | $3.24 | $3.24 |
| 250+ | $3.04 | $3.04 |
| 462+ | $2.87 | $2.87 |
| 1,078+ | $2.75 | $2.75 |
| 2,618+ | $2.68 | $2.68 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 47 µH.
The DC current rating is 5.6 A, based on a 50°C temperature rise.
The maximum DC resistance is 36 mOhm.
The package is Radial, Vertical (Open), a through-hole mounting style.
The operating temperature range is -55°C to 200°C.
Yes, it is shielded.
The tolerance is ±15%.
