| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
252 pcs
|
252 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| A Dimension | |
| Above Board Height | |
| Accepting Lead Range | |
| B Dimension | |
| C Dimension | |
| Cage Code | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Number | |
| Contact Resistance | |
| Country of Origin | |
| Current Rating | |
| Dielectric Withstanding Voltage | |
| Features | |
| Frame Type | |
| Housing Material | |
| Insulation Resistance | |
| Insulator Height | |
| Insulator Material | |
| Lead Style | |
| Mechanical Life | |
| Mounting Hole Diameter | |
| Mounting Type | |
| Number of Pins | |
| Number of Positions or Pins (Grid) | |
| Operating Temperature | |
| Operating Temperature Range | |
| Packaging Type | |
| Pitch | |
| Prop 65 | |
| Quantity Per Tube | |
| Rated Voltage | |
| Shock | |
| Special Handling Code | |
| Tail Diameter | |
| Tail Length | |
| Tail Type | |
| Tape & Reel | |
| Termination | |
| Type | |
| Vibration |

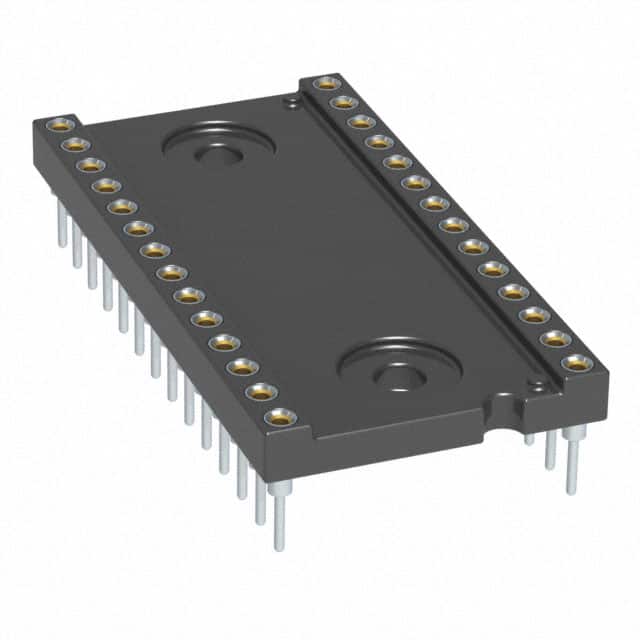

The Mill-Max 210-93-628-41-001000 is a 28-position dual in line IC socket designed for through-hole solder mounting. It features a 2.54 mm (0.100") pitch and 0.6" (15.24 mm) row spacing. The socket uses a closed frame high-temperature thermoplastic insulator with beryllium copper contacts. Inner contacts are plated with 30 µ" gold over 50 µ" nickel, and the shell features 200 µ" tin-lead (93/7) over 100 µ" nickel.
Electrically, the socket is rated for 3 A current, 100 VRMS / 150 VDC voltage, with 10 mΩ maximum contact resistance and 10,000 MΩ minimum insulation resistance. It operates over a temperature range of -55°C to 125°C. Mechanical life is rated at 1,000 cycles minimum with no discontinuity under shock or vibration. The accepting lead range is 0.381-0.635 mm (0.015"-0.025").
This socket is packaged in tubes of 14 pieces. It is not RoHS compliant and is REACH unaffected. The country of origin is USA.
This socket has 28 pins arranged in a 2 x 14 grid.
The pitch is 2.54 mm (0.100 inches).
The current rating is 3 amps.
The rated voltage is 100 VRMS / 150 VDC.
Through-hole solder mount with solder tail terminals.
The operating temperature range is -55°C to 125°C.
No, the socket is not RoHS compliant. It has tin-lead plating.
