| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
150 pcs
|
150 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accomodates a Fuse | |
| Approval Agency | |
| Connector Style | |
| Connector Type | |
| Current Rating | |
| Features | |
| Filter Type | |
| Fuse Accommodation | |
| Halogen Free | |
| Industrial Grade | |
| Mounting Type | |
| Number of Positions | |
| Panel Cutout Dimensions | |
| SVHC Present | |
| Termination | |
| Termination Style | |
| Voltage Rating |

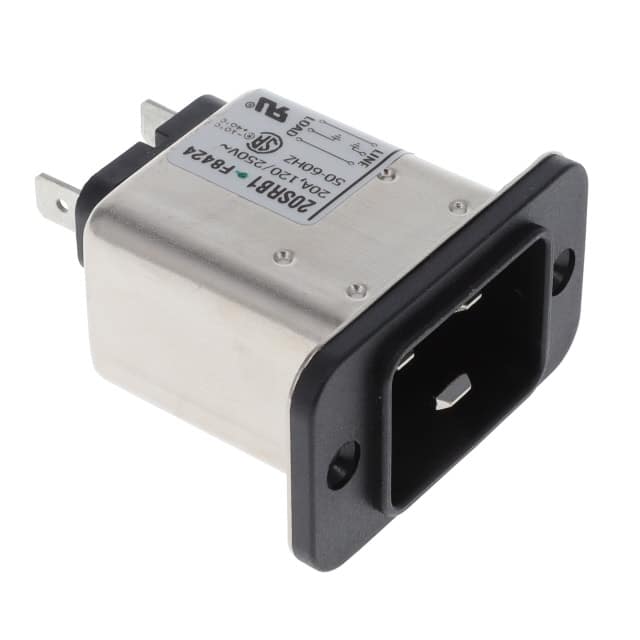

The TE Connectivity 20SRB1 is a filtered power entry module featuring an IEC 320-C20 receptacle with male blades. It is rated for 20A at 120/250VAC and includes commercial-grade EMI/RFI filtering to reduce conducted interference. The module is designed for panel mounting with a flange and offers front or rear side mounting flexibility. Termination is via quick connect tabs (0.250" / 6.3mm). The 3-position connector accommodates line, neutral, and ground. Compliance with CSA, UL, and VDE standards ensures suitability for global applications. This module does not include a fuse holder. It is RoHS3 compliant and has an MSL of 1 (unlimited). Typical applications include power supplies, industrial equipment, and medical devices requiring filtered AC input.
20A.
120/250 VAC.
3 positions.
Panel mount with flange.
Yes, commercial EMI/RFI filtering.
Quick connect 0.250" (6.3mm).
CSA, UL, VDE.
