| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,078 pcs
|
3078 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Resistance | |
| Current Rating | |
| Features | |
| Height Above Board | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Packaging Type | |
| Pitch | |
| Storage Temperature | |
| Tape & Reel | |
| Termination Style | |
| Voltage Rating | |
| Withstanding Voltage |

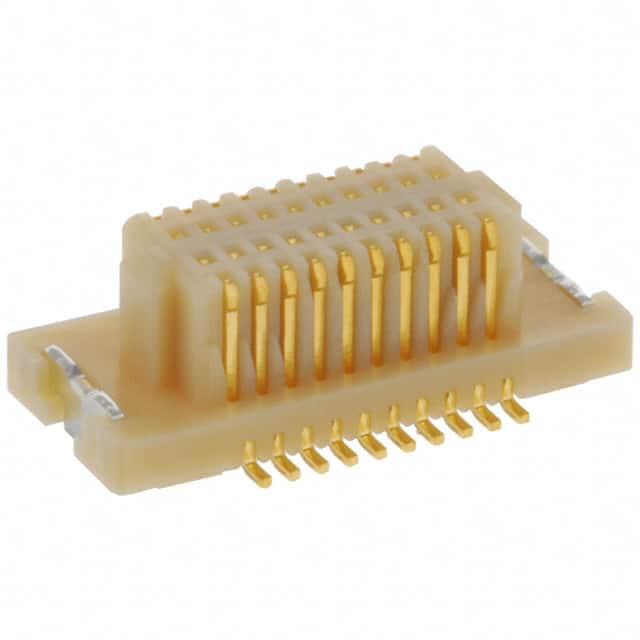

The JST JMD series 20R-JMDSS-G-1-TF(S)(LF)(SN) is a 20-position receptacle connector with center strip contacts designed for board-to-board mezzanine applications. It features a 0.5mm pitch and surface mount termination with gold contact finish. The connector includes solder retention for secure mounting and supports mated stacking heights of 4.5mm, 5mm, and 6mm.
Electrical ratings: current 0.5A, voltage 50V, contact resistance 50mΩ max initial (100mΩ after environmental tests), insulation resistance 500MΩ min, withstanding voltage 500V AC for one minute. Operating temperature range is -25°C to +85°C.
The connector is supplied in embossed tape and reel packaging suitable for automated placement. Compliance: RoHS3 compliant, REACH unaffected, MSL 1 unlimited (all unverified).
20 positions.
0.5mm (0.020 inches).
0.5A.
50V.
Surface mount (SMD).
Gold.
-25°C to +85°C.
