| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Control Interface | |
| Current | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Ripple | |
| Standard Number | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

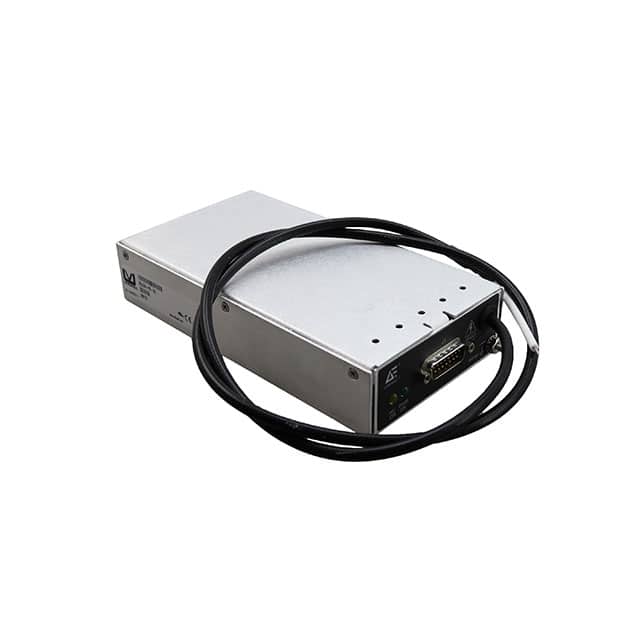

The Advanced Energy 20LE24-P4-AZ is a high-voltage DC-to-DC converter from the UltraVolt LE Series, offering precise regulation and low ripple suitable for demanding applications. This model provides a maximum output voltage of 20,000 VDC and a maximum output power of 4W.
Key electrical specifications include a nominal 24 VDC input and a low output current of 0.20mA. The converter features an analog control interface for voltage and current setpoint monitoring and control. It also boasts a low ripple of 0.002% and a temperature coefficient of 25 ppm/°C, ensuring stability.
Designed for ease of integration, the 20LE24-P4-AZ is chassis mountable. Its operating temperature range is 10°C to 45°C. The unit is recognized by UL/cUL and carries a CE mark, complying with IEC-62368-1 standards.
Typical applications for this converter include DC to high voltage DC bias supplies, mass spectrometry, electrophoresis, and scanning electron microscopes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum output voltage is 20,000 VDC.
The maximum output power is 4W.
The nominal input voltage is 24 VDC.
The operating temperature range is 10°C to 45°C.
It is a chassis mount type.
Typical applications include DC to high voltage DC bias supplies, mass spectrometry, electrophoresis, and scanning electron microscopes.
