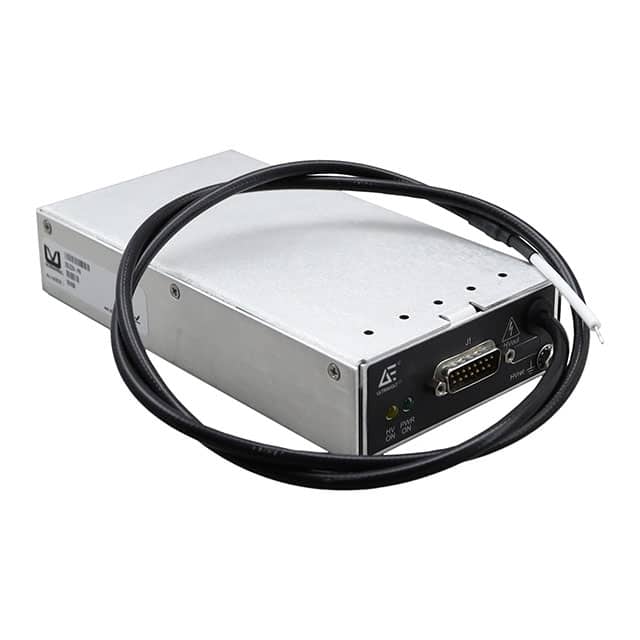

The 20LE24-P4 is a high voltage DC/DC converter manufactured by Advanced Energy. It provides an output voltage range from 0 to 20,000 VDC and operates with an input voltage nominally at 24 VDC within a range of 23 to 30 VDC. The converter delivers a maximum output current of 0.20 mA and a maximum output power of 4 W. It features an analog control interface and is designed for applications requiring high voltage isolation and precision. The device is packaged for chassis mounting and measures 184.9 mm in length, 100 mm in width, and 38.1 mm in height. It is compliant with the IEC 62368-1 standard and approved by CE and cURus agencies.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 23 to 30 VDC.
The maximum output voltage is 20,000 VDC.
The maximum output power is 4 W.
It complies with IEC 62368-1.
It has an analog control interface.
