| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Control Interface | |
| Current | |
| Dimensions | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Ripple | |
| Standard Number | |
| Storage Temperature | |
| Tape & Reel | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

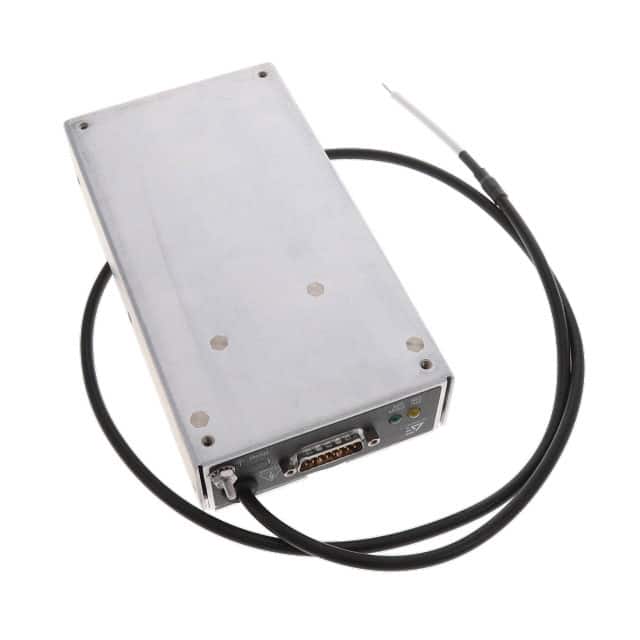

The Advanced Energy UltraVolt LE Series 20LE24-P30 is a precision, low ripple DC-to-high voltage DC converter designed for demanding applications. It provides a regulated high voltage output ranging up to 30 kV DC with a maximum output power of 30 W. The converter operates from a 24 VDC input and features a 0 to 10 VDC analog control interface for precise adjustment and monitoring of output voltage and current setpoints.
This series offers excellent stability and low ripple (0.002%), making it suitable for applications requiring stable high voltage bias. The 20LE24-P30 is designed for chassis mounting and includes options for front and rear panel high voltage output and return. It is UL/cUL recognized and CE marked, complying with IEC-62368-1 standards.
Typical applications include DC to high voltage DC bias supplies, mass spectrometry, electrophoresis, scanning electron microscopes (SEM/FIB), and electron and ion beam systems. The operating temperature range is 10°C to 45°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum output voltage is 30,000 VDC.
The maximum output power is 30 W.
The input voltage range is 23 to 30 VDC.
The ripple is a maximum of 0.002% when the output is between 10% to 100%.
The operating temperature range is 10°C to 45°C.
It features a 0 to 10 VDC analog control interface.
