| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Control Interface | |
| Current | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Ripple | |
| Standard Number | |
| Storage Temperature | |
| Tape & Reel | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

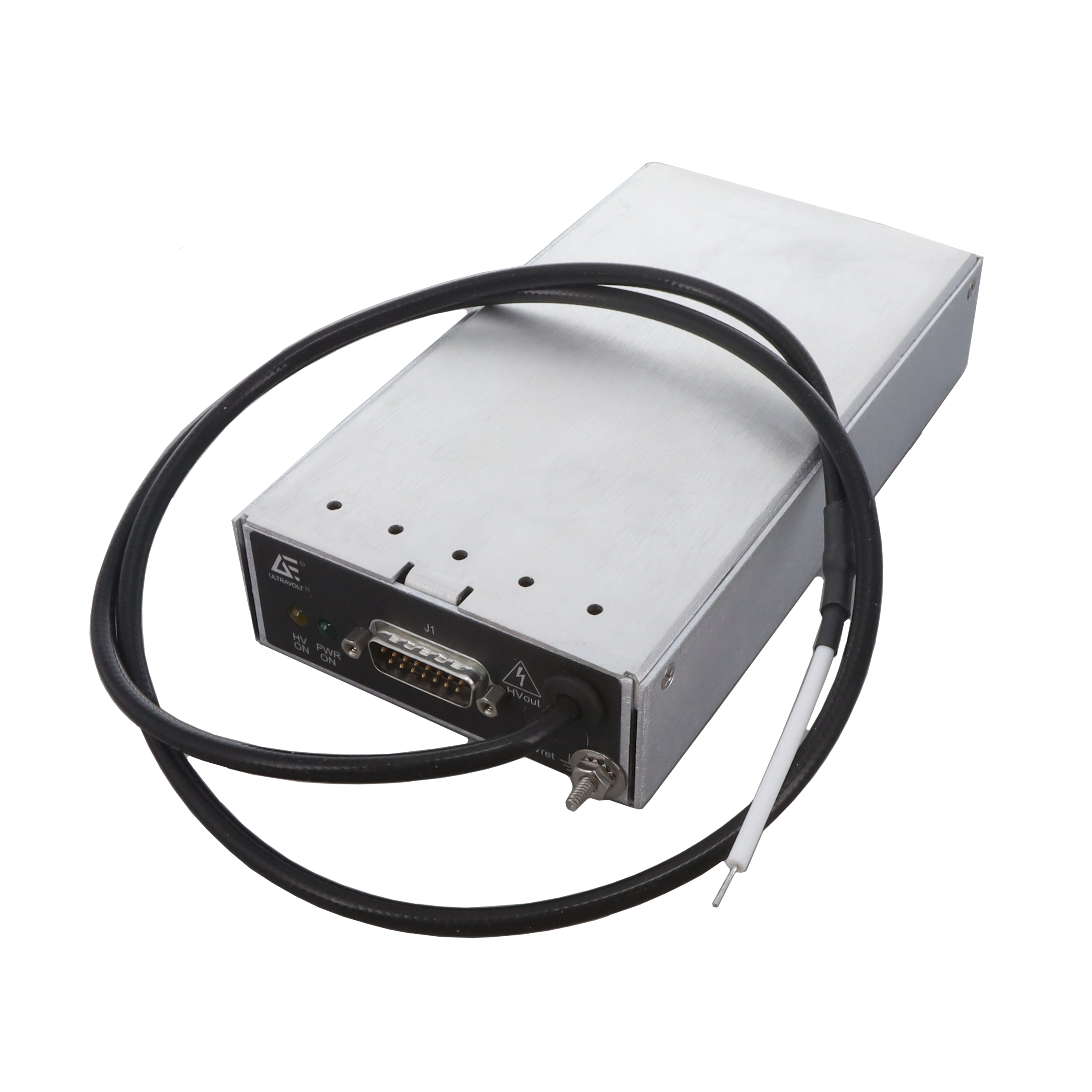

The Advanced Energy UltraVolt LE Series 20LE24-P15 is a precision, low ripple DC-to-DC converter designed for high voltage applications. It offers a regulated high voltage output ranging up to 20,000 VDC with a maximum output power of 15W. The converter operates from a nominal 24 VDC input and features an analog control interface.
Key electrical specifications include a maximum output current of 750 µA and a low ripple of less than 0.002%. The temperature coefficient is rated at 25 ppm/°C, ensuring stability across its operating temperature range of 10°C to 45°C. The unit is designed for chassis mounting and provides positive or negative polarity models.
This DC-DC converter is suitable for various precision high voltage applications such as DC to high voltage DC bias supplies, mass spectrometry, electrophoresis, scanning electron microscopes, and electron/ion beams. It is UL/cUL recognized and CE marked, complying with IEC-62368-1 standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum output voltage is 20,000 VDC.
The maximum output power is 15W.
The input voltage range is 23 to 30 VDC, with a nominal input of 24 VDC.
The operating temperature range is 10°C to 45°C.
The RoHS status is RoHS3 Compliant.
