| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Control Interface | |
| Current | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Ripple | |
| Standard Number | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

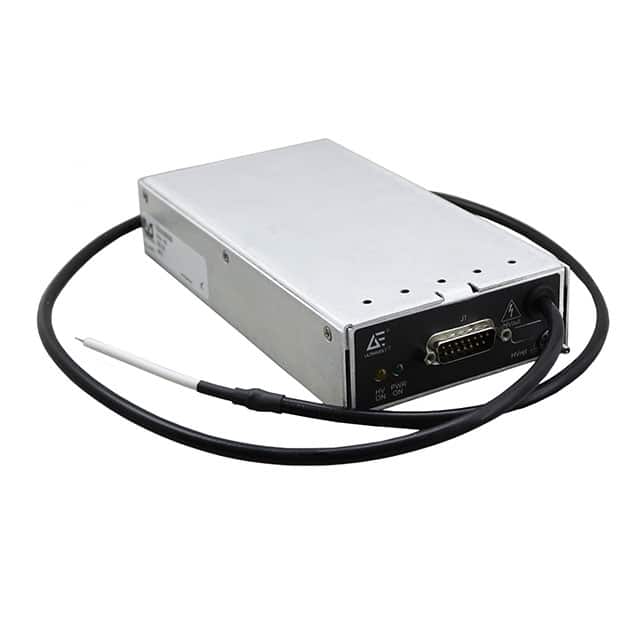

The Advanced Energy UltraVolt LE Series 20LE24-N30 is a precision, low ripple DC-to-DC converter designed for high voltage applications. It provides a regulated high voltage output ranging from 0 to 20,000 VDC with a maximum output power of 30W. The converter operates from a nominal 24 VDC input, with a range of 23 to 30 VDC.
Key electrical specifications include a low ripple of 0.002% and a temperature coefficient of 25 ppm/°C, ensuring stability in demanding environments. It features an analog control interface for voltage and current setpoint adjustments. The unit is chassis mountable and suitable for applications requiring DC to high voltage DC bias supplies.
Typical applications include mass spectrometry, electrophoresis, scanning electron microscopes (SEM/FIB), and electron and ion beams. The converter is UL/cUL recognized and CE marked for LVD and RoHS compliance, adhering to IEC-62368-1 standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum output voltage is 20,000 VDC.
The maximum output power is 30W.
The input voltage range is 23 to 30 VDC, with a nominal value of 24 VDC.
The operating temperature range is 10°C to 45°C.
It features an analog control interface.
