| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Control Interface | |
| Current | |
| Height | |
| Input Voltage | |
| Lead Spacing | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power | |
| Power (Watts) | |
| Ripple | |
| Standard Number | |
| Tape & Reel | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

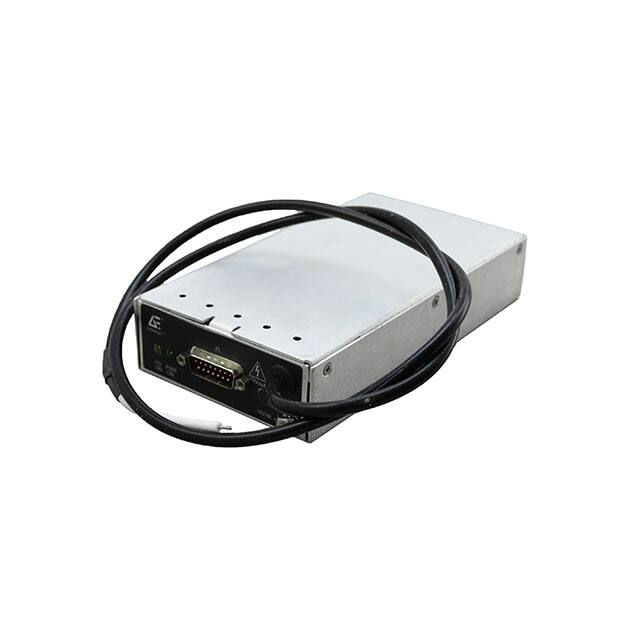

The Advanced Energy UltraVolt LE Series 20LE24-N15 is a high-voltage DC-to-DC converter designed for precision applications. It offers a maximum output power of 15W and can deliver regulated high voltage outputs up to 20,000 VDC. The converter operates with a nominal input voltage of 24 VDC and features a low ripple of 0.002%.
This series is suitable for high voltage applications requiring excellent low ripple and stability. The 20LE24-N15 includes an analog control interface for full-scale 0 to 10 VDC control and monitoring of output voltage and current setpoints. It has a temperature coefficient of 25 ppm/°C and operates within a temperature range of 10°C to 45°C.
The unit is designed for chassis mounting and offers front and rear panel high voltage output and return options. It is UL/cUL recognized and CE marked, complying with LVD and RoHS directives, as well as IEC-62368-1 standards. Typical applications include DC to high voltage DC bias supplies, mass spectrometry, electrophoresis, and scanning electron microscopes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 23 to 30 VDC.
The maximum output voltage is 20,000 VDC.
The power capacity is 15W.
It uses chassis mount mounting.
It operates between 10°C and 45°C.
