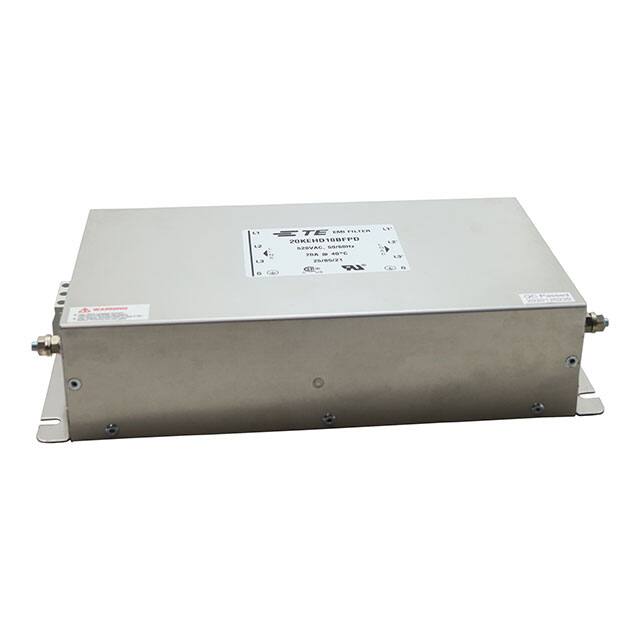

20KEHD10BFPD The TE Connectivity 20KEHD10BFPD is a 20A, 520V, two stage three phase (Delta) power line filter module. It features chassis mount, terminal block termination, and an operating temperature range of -25°C to 85°C.
Mfr Part #:

20KEHD10BFPD

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
The TE Connectivity 20KEHD10BFPD is a 20A, 520V, two stage three phase (Delta) power line filter module. It features chassis mount, terminal block termination, and an operating temperature range of -25°C to 85°C.
✓ Total Stock: 3 pcs
$ Price Range: $299.43

20KEHD10BFPD Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
3 pcs
On Request
3 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

20KEHD10BFPD Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Configuration
Current
Filter Type
Frequency
Mounting Type
Operating Temperature
Termination Style
Voltage
View Similar Products (0)

20KEHD10BFPD Description

Short technical summary and product information.

The TE Connectivity 20KEHD10BFPD is a power line filter module designed for general purpose applications requiring three phase (Delta) filtering. It is a two stage filter rated for 20A of continuous current at 520VAC, operating at line frequencies of 50/60 Hz.



This filter is chassis mounted and uses terminal block connections for secure and reliable wiring. It is designed to operate over a wide temperature range from -25°C to 85°C, making it suitable for various industrial environments. The component carries CSA and UL safety approvals.



The 20KEHD10BFPD is part of the KEH series from TE Connectivity, a recognized manufacturer of interconnect and sensor solutions. Its two stage configuration provides effective attenuation of conducted electromagnetic interference on three phase power lines.

20KEHD10BFPD Quick Information

Product Type: Power Line Filter Module
Series: KEH
Canonical Name: TE Connectivity KEH Series 20A Two Stage Three Phase Power Line Filter Module
Subcategory: Three Phase Filter

20KEHD10BFPD Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

20KEHD10BFPD Estimated Pricing

Qty Low High
1+ $299.43 $299.43

Estimated market price range - modelled values for guidance only, not live distributor offers.

20KEHD10BFPD Features

  • Two stage three phase (Delta) filter design.
  • Rated for 20A continuous current at 520V.
  • Chassis mount with terminal block connections.
  • Operates from -25°C to 85°C ambient.
  • CSA and UL safety agency approved.

20KEHD10BFPD Applications

  • General purpose EMI filtering in three phase systems.
  • Industrial machinery and equipment power lines.
  • Variable frequency drive input filtering applications.
  • Power supply input line noise suppression.

20KEHD10BFPD FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating temperature range of the 20KEHD10BFPD?

The operating temperature range is -25°C to 85°C.

What is the voltage rating of this filter?

The voltage rating is 520 V.

What is the current rating of the 20KEHD10BFPD?

The current rating is 20 A.

What type of filter configuration does this part have?

It has a two stage configuration.

Is the 20KEHD10BFPD RoHS compliant?

The RoHS status is listed as RoHS3 Compliant, but this data is unverified.

What mounting and termination styles does this filter use?

It uses chassis mount and terminal block termination.

What safety approvals does the 20KEHD10BFPD have?

It has CSA and UL approval.
