| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage Max | |
| Input Voltage Min | |
| Isolation Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Package / Case | |
| Power | |
| Power (Watts) | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

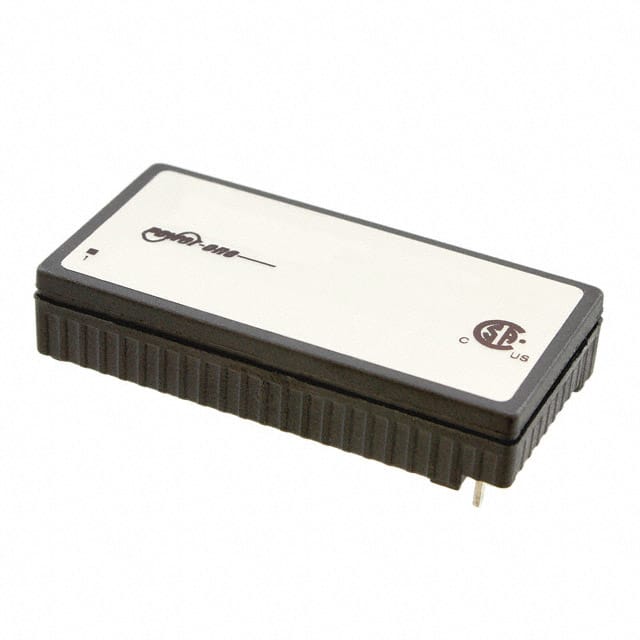

The 20IMX7-05-8G from Bel Power Solutions is a board-mountable, isolated DC DC converter module from the IMX7 series. It delivers a single regulated output of 5.1V at 1.2A (7W) with a typical efficiency of 78%.
Designed for wide input voltage applications, the module accepts an input range from 8.4V up to 150V DC, making it suitable for systems with variable or high transient bus voltages. The module features a robust set of protection and control functions including remote on/off, overcurrent protection (OCP), over-temperature protection (OTP), over-voltage protection (OVP), short-circuit protection (SCP), and under-voltage lockout (UVLO).
The converter is housed in a 14-DIP through-hole package measuring 50.8mm x 25.4mm x 10.4mm and is rated for an operating ambient temperature range of -40°C to +85°C. The conformal coated construction enhances durability in demanding environments. This part is RoHS3 compliant and rated MSL level 1.
It provides a single output of 5.1V at 1.2A.
The input range is 8.4V to 150V DC.
The module operates from -40°C to +85°C.
It is packaged in a through-hole 14-DIP module.
Yes, it is RoHS3 compliant.
It includes remote on/off, OCP, OTP, OVP, SCP, and UVLO.
