Mfr Part #:

20FMN-BMTTN-A-TF(LF)(SN)

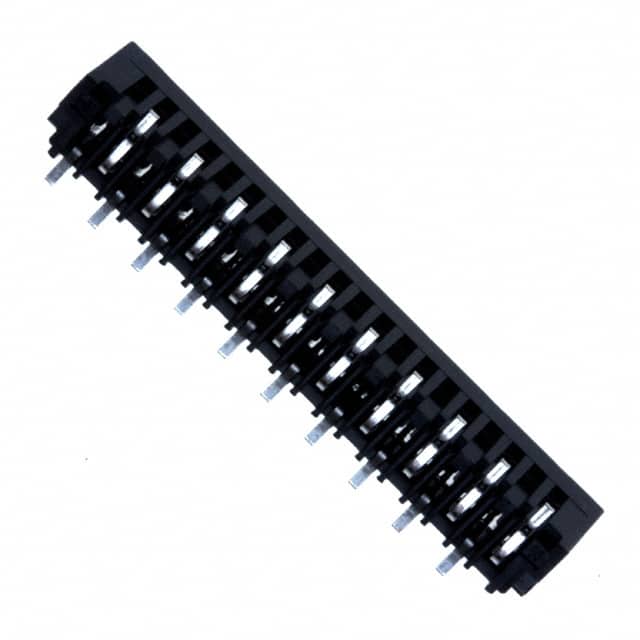

Name: 20FMN-BMTTN-A-TF(LF)(SN)
Brand: Jst Manufacturing
SKU: 20FMN-BMTTN-A-TF(LF)(SN)

Mfr Name: Jst Manufacturing

Description:

CONN FFC VERT 20POS 1MM SMD

Stock on Request

20FMN-BMTTN-A-TF(LF)(SN) Description

Short technical summary and product information.

CONN FFC VERT 20POS 1MM SMD

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

Jst Manufacturing

CONN FFC VERT 20POS 1MM SMD

20FMN-BMTR-A-TB

Jst Manufacturing

CONN FFC VERT 20POS 1MM SMD

Jst Manufacturing

CONN FFC VERT 20POS 1MM SMD

20FMN-BMT-A-TF

Jst Manufacturing

CONN FFC VERT 20POS 1MM SMD

Category	FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer Name	Jst Manufacturing
Cable End Type	Straight
Connector	Contacts, Vertical - 1 Sided
Contact Finish	Tin
Contact Material	Phosphor Bronze
FFC, FCB Thickness	0.30mm
Features	Low Insertion Force (LIF)
Flat Flex Type	FFC
Height Above Board	0.201" (5.10mm)
Housing Material	Polyamide (PA6T), Nylon 6T
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	20
Operating Temperature	-25°C ~ 85°C
Pitch	0.039" (1.00mm)
Termination	Solder
Voltage Rating	50V
