| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
46,445 pcs
|
46445 pcs | On Request | 1 | On Request | On Request | 25+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Tape & Reel |

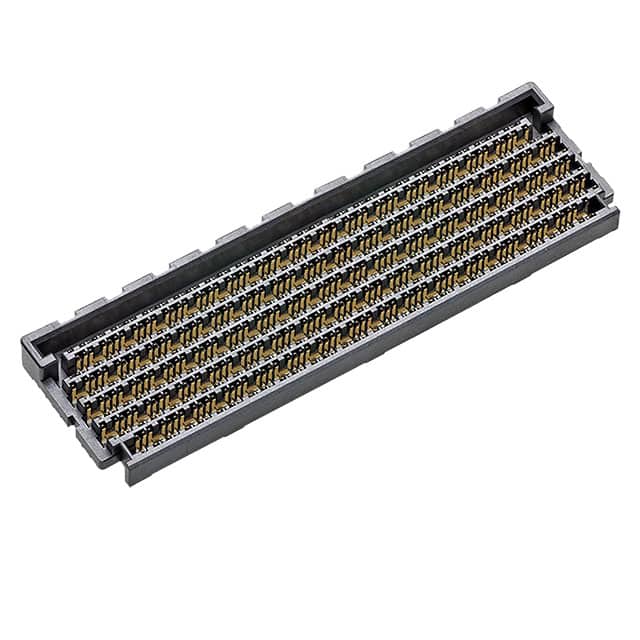

The Molex 2093111115 is a high density array receptacle designed for board-to-board mezzanine applications. It features 330 positions arranged in 11 rows, providing a compact and reliable interconnection solution. The connector uses a female contact design with a gold finish of 30.0µin (0.76µm) for excellent conductivity and corrosion resistance.
This surface mount connector has a height above board of 0.183" (4.65mm) and supports a mated stacking height of 5mm, making it suitable for space-constrained designs. It includes board guide and pick and place features to facilitate automated assembly.
The connector is RoHS3 compliant and has an MSL of 1 (unlimited), allowing for flexible handling during manufacturing. It is commonly used in applications requiring high-density interconnects such as servers, networking equipment, and industrial electronics.
| Qty | Low | High |
|---|---|---|
| 1+ | $53.87 | $53.87 |
| 10+ | $47.66 | $47.66 |
| 25+ | $45.79 | $45.79 |
| 100+ | $44.99 | $44.99 |
| 150+ | $44.99 | $44.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
High Density Array, Female receptacle.
330 positions arranged in 11 rows.
Surface Mount.
Gold finish with 30.0µin (0.76µm) thickness.
5mm.
