| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Insulation Resistance | |
| Mounting Type | |
| Operating Temperature | |
| Rated Current | |
| Static Pressure | |
| Storage Temperature | |
| Terminal Type | |
| Weight |

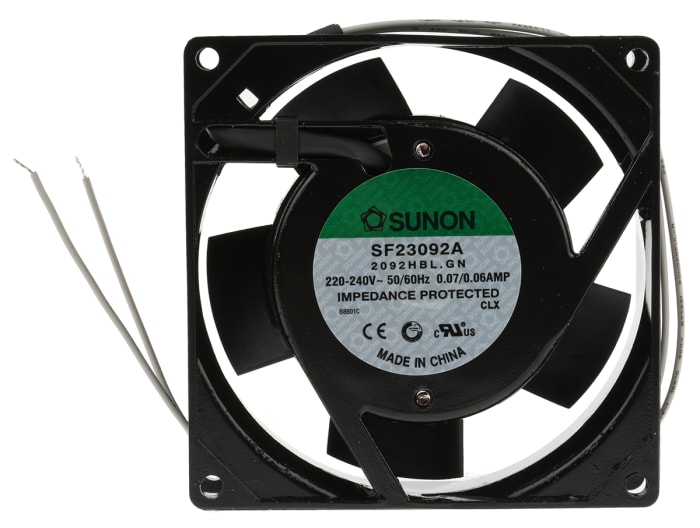

The SUNON 2092HBL is an Axial AC Fan from the SF Series, measuring 92x92x25 mm. It operates on a rated voltage of 220/240 VAC with an operating range of 185-245 VAC.
This fan delivers an air flow of 30/37 CFM (or 51 m³/h) and a static pressure of 0.13/0.19 Inch-H2O. It operates at a rated speed of 2350/2850 RPM with a rated current of 0.07/0.06 AMP and an input power of 14.5/14 Watts. The noise level is rated between 37/40 dB(A).
Key features include a reliable shaded-pole motor construction, impedance protection, and a precise ball bearing system for longevity. The frame is made of die-cast aluminum, and the impeller is constructed from thermoplastic PBT (UL 94-V0). The fan's direction of rotation is counter-clockwise when viewed from the front fan blade. It is designed for operation in temperatures ranging from -10 to +70 °C.
Applications for this fan include cabinet cooling, switch networks, power systems, IT systems, medical, and industrial equipment requiring consistent air cooling.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The fan operates at a rated voltage of 220/240 VAC at 50/60 Hz, with an operating range of 185-245 VAC.
The operating temperature range is -10 to +70 °C.
The fan frame size is 92 mm square with a depth of 25 mm.
The fan delivers 30/37 CFM at 50/60 Hz.
The rated speed is 2350/2850 RPM ±10%.
The fan uses a precise ball bearing system.
The noise level is 37/40 dB(A).
