| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,010 pcs
|
1010 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request | |
|
130 pcs
|
130 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Housing Color | |
| Housing Material | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Style | |
| Tape & Reel | |
| Termination |

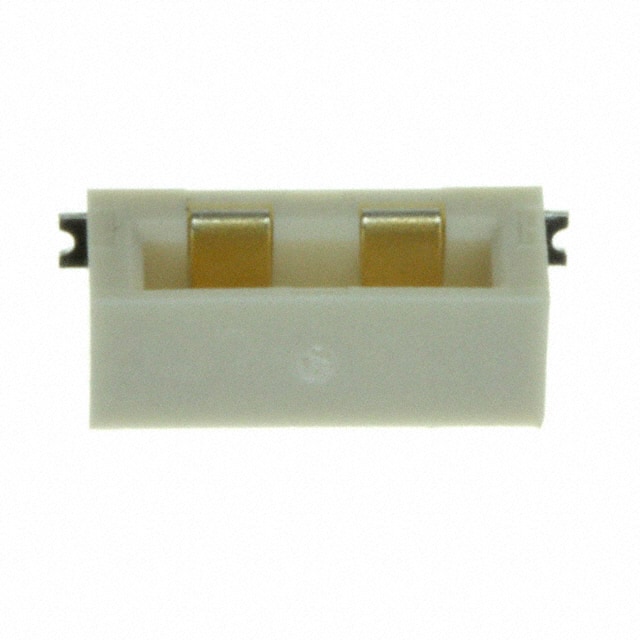

This is a solid state lighting connector assembly from Kyocera AVX, part number 209159002101116. It is a socket type connector designed for board-to-board or cable applications.
Key specifications include 2 positions with a 3.00mm pitch, surface mount right angle mounting, and solder termination. The contacts are made of copper alloy with gold finish, and the housing is white polyamide (PA46) nylon 4/6.
The connector operates over a temperature range of -40°C to 125°C and includes a solder retention feature for secure attachment. It is suitable for solid state lighting applications.
2 positions.
3.00mm (0.118 inches).
Surface mount, right angle.
-40°C to 125°C.
Polyamide (PA46), Nylon 4/6, white.
Gold.
Solder retention.
