| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Gender | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| Operating Temperature Max | |
| Shielding | |
| Specifications | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage | |
| Voltage Rating |

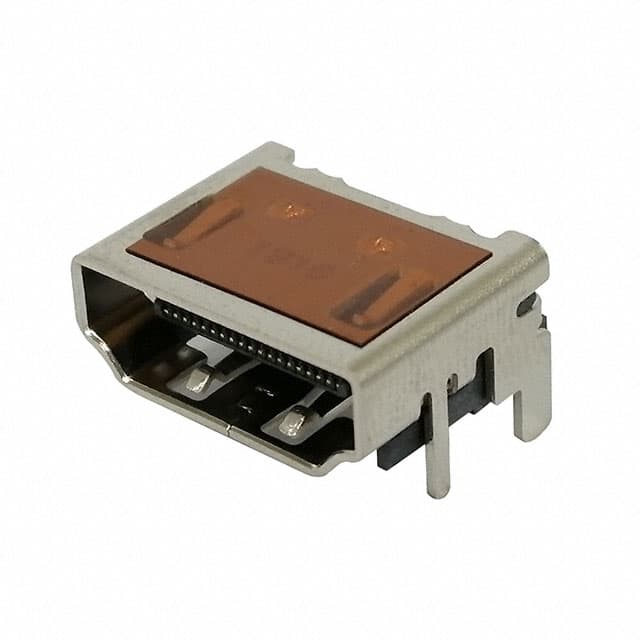

The Molex 2086581001 is a 19-position HDMI receptacle connector designed for HDMI 2.1 applications. It features a shielded, right-angle surface mount package with solder termination. The connector is rated for 0.5A per contact and 40 VDC, with a mating cycle durability of 10,000 cycles. It operates over a temperature range of -20°C to 85°C.
This connector is suitable for high-speed digital video and audio interfaces requiring HDMI 2.1 compliance. The horizontal mounting orientation and shielded design help reduce electromagnetic interference. The 19-contact configuration supports all HDMI signal channels including TMDS, DDC, and HPD.
The current rating is 0.5A per contact.
The voltage rating is 40 VDC.
It uses surface mount, right angle mounting with solder termination.
It is rated for 10,000 mating cycles.
The operating temperature range is -20°C to 85°C.
