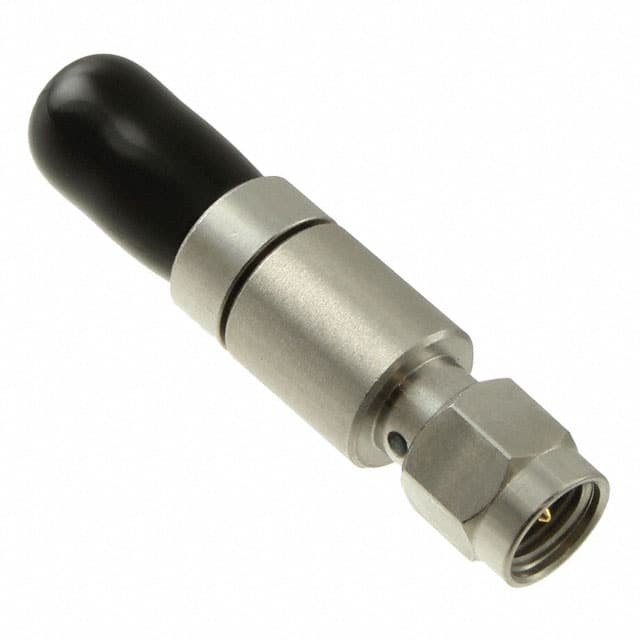

The MACOM 2086-6000-00 is a Schottky detector designed for RF applications, operating within a frequency range of 1 GHz to 15 GHz. This device features high output sensitivity, specified at a minimum of 1500 mV/mW under open circuit load conditions for RF power levels below -20 dBm.
Key electrical characteristics include a flatness of ±1.25 dB maximum and a tangential sensitivity of -52 dBm minimum. The detector has an output capacitance of 12 pF typical and a video resistance of 1200 Ohms typical. It provides a negative output polarity and requires a nominal bias current of 50 µA. The maximum continuous power rating is 100 mW.
Designed for reliability, the 2086-6000-00 operates across a temperature range of -50°C to +125°C with a temperature stability of ±2.0 dB maximum. The burnout rating is 100 mW. The detector is housed in a Module Adapter, SMA M to F package and utilizes connector mount for installation.
This RF detector is suitable for various signal monitoring and measurement applications where accurate detection across a wide frequency band is required. Its robust specifications make it a reliable component for demanding RF systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The frequency range is 1.0 - 15.0 GHz.
The flatness is ±1.25 dB maximum.
The open circuit voltage sensitivity is 1500 mV/mW minimum.
The tangential sensitivity is -52 dBm minimum.
The output capacitance is 12 pF typical.
The video resistance is 1200 Ohms typical.
The operating temperature range is -50°C to +125°C.
