| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applies To | |
| Brand | |
| Connector Style | |
| Connector Type | |
| Contact Base Material | |
| Contact Finish | |
| Contact Plating, Mating Area, Material | |
| Contact Termination Type | |
| Contact Type | |
| Fastening Type | |
| Fluid Resistance | |
| Housing Color | |
| Housing Material | |
| Keying | |
| Material Flammability Rating | |
| Mating Alignment Type | |
| Mating Retention Type | |
| Mount Angle | |
| Mount Style | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Number of Power Positions | |
| Number of Signal Positions | |
| Operating Temperature | |
| Orientation | |
| PCB Mount Retention | |
| Primary Material | |
| Product Series | |
| Reverse Gender | |
| Reverse Numbering | |
| Sealed | |
| Shell Material | |
| Shell Size | |
| Shell Type | |
| Termination | |
| Termination End Plating | |
| Termination Method | |
| Termination Post Length | |
| Termination Style | |
| Thread Size | |
| UL Flammability Rating | |
| Voltage Rating |

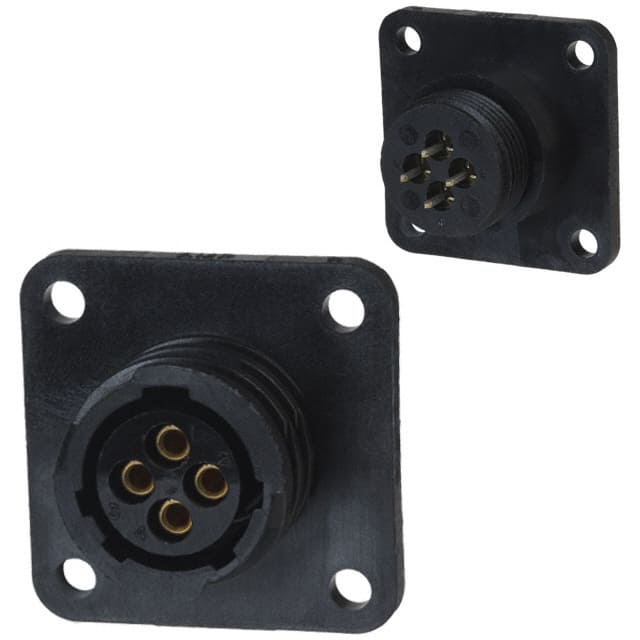

This TE Connectivity 208283-4 is a circular connector assembly designed as a receptacle with 4 positions, all of which are signal positions. It features a straight mount angle and a threaded coupling for mating retention. The termination method is solder, with a through hole contact termination type. The termination posts have a length of 4.04 mm and are plated with tin over nickel.
The connector has an all-plastic shell type and a shell size of 11-4. The housing is made of black thermoplastic with glass-filled reinforcement and has a UL 94V-0 flammability rating. It is part of the Series 1 product line and has a thread size of 5/8 - 24 UNEF-2A. The mating alignment is keyed.
Electrical specifications include a voltage rating of 250VAC/DC and gold plating on the mating area of the socket contacts, made from a copper alloy base material. The operating temperature range is from -55°C to 105°C. This connector is not sealed and does not have fluid resistance.
Mounting is achieved via a flange with mounting holes, suitable for panel mounting. The contact termination is through hole. This product is RoHS and ELV compliant and supports lead-free solder processes, being wave solder capable up to 260°C.
The voltage rating is 250VAC/DC.
The connector has 4 positions, all of which are signal positions.
It features a flange with mounting holes for panel mount and through hole termination.
The contact plating in the mating area is Gold.
The operating temperature range is -55°C to 105°C.
The termination method is solder.
No, this connector is not sealed.
