| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Shell Size | |
| Shielding | |
| Termination |

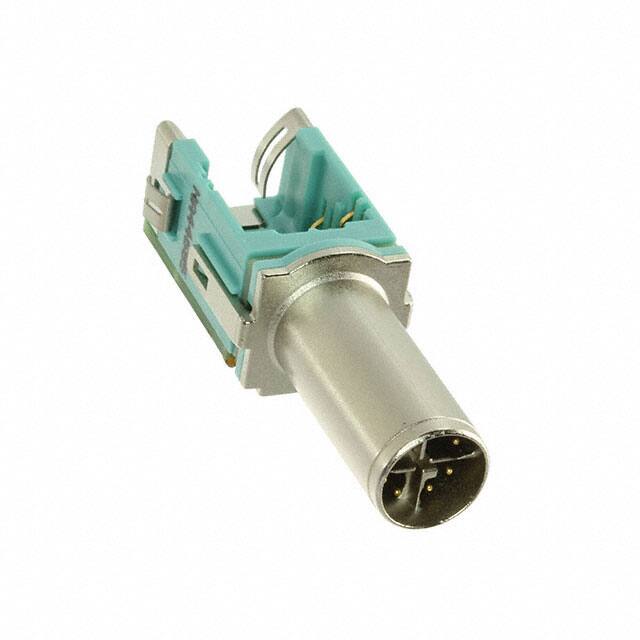

The Harting 20820061218 is a male pin insert designed for use in M12 circular connector assemblies. It features 8 positions arranged in an X orientation within an M12-8 shell size. Termination is via spring tabs, and the contacts are finished in gold for reliable conductivity.
This insert is shielded to provide electromagnetic interference protection. It is rated for a current of 1.18 A and operates over a temperature range of -40°C to 70°C. The insert is intended for use with a separate shell, as it is an insert-only component.
Typical applications include industrial automation, sensor connections, and data transmission systems where a compact, shielded circular connector interface is required.
It has 8 positions.
The current rating is 1.18 A.
The operating temperature range is -40°C to 70°C.
Yes, it is shielded.
It uses spring tabs termination.
The shell size is M12-8 and the orientation is X.
