| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

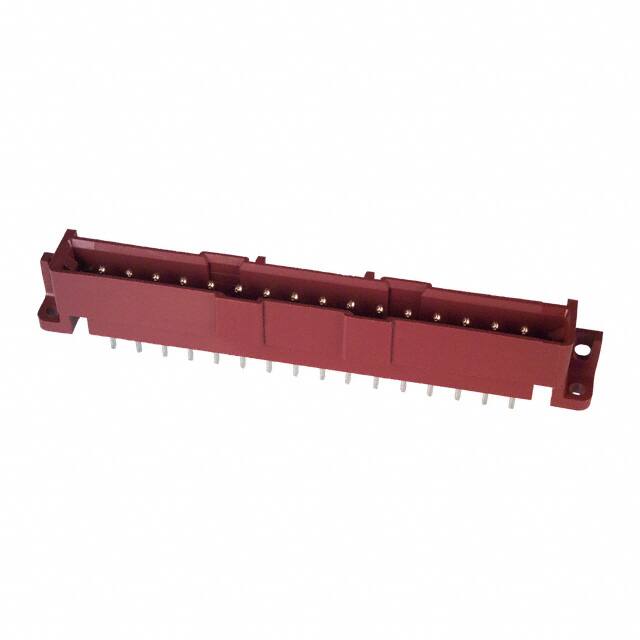

The TE Connectivity 207599-7 is a 16-position, single-row header with male pin contacts arranged on a 5.00mm pitch. This shrouded header features a 4-wall design with a latch holder fastening type, ensuring secure mating. It is designed for through hole mounting with solder termination, making it suitable for board-to-board or cable applications. The header is insulated with black and red polyamide (nylon) material rated UL94 V-0, and has an insulation height of 17.50mm. The circular male pins are made of brass with a tin finish (30.0µin / 0.76µm) and a contact length of 4.72mm. It includes a mounting flange for additional mechanical stability. The operating temperature range is -55°C to 130°C, with a current rating of 7.5A and voltage rating of 600V.
16 positions in a single row.
5.00mm (0.197 inches).
7.5A.
600V.
Through hole with solder termination.
-55°C to 130°C.
Yes, it has a shrouded 4-wall design with a latch holder.
